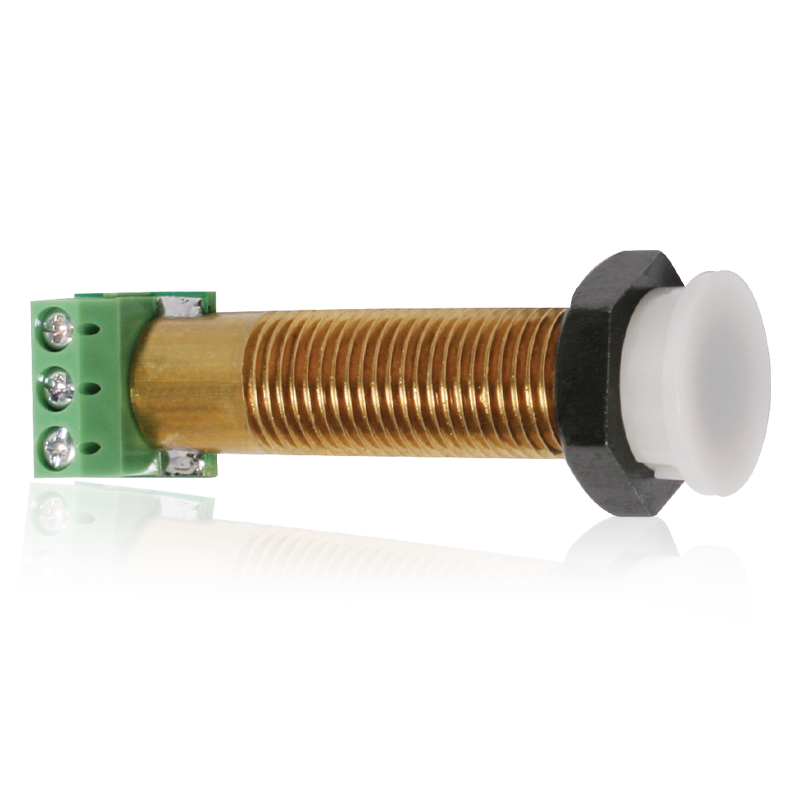

Infrared Repeater System Receiver, Cabinet Mount

M-1A

    DESCRIPTION

    AtlasIED M-1A IR repeater allows the operation of virtually any IR-controlled A/V component from multiple room locations. The M-1A repeater will receive the IR signal and rebroadcast it to the small F-1 flasher LED positioned on the front of each A/V component. The F-1 forwards the signal to the source component’s IR receiver.
    These micro repeaters feature an attractive, flush, white lens that blends with any white surface. Their high sensitivity enables use within a 40-foot range with fast reaction time and minimal interference. Repeater is separate for flush-mounting in a ceiling, wall, cabinet, or speaker grille. Model M-1A conceals behind the grille of Architectural Series in-wall speakers, to provide custom IR control.


    Features
    • Allows the Operation of Virtually Any IR-Controlled A/V Component From Multiple Room Locations
    • High Sensitivity Enables Use Within a 40 Foot Range with Fast Reaction Time and Minimal Interference
    • Receive the IR Signal and Rebroadcast It to the Small F-1 Flasher LED

    SPECIFICATIONS
    Color White
    Current Draw 12 mA
    Style Flush Mount
    Diameter 1/2" (1.27 cm)
    Depth 2" (5.08 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Warranty Period 36 months from date of purchase

    SUPPORT FILES

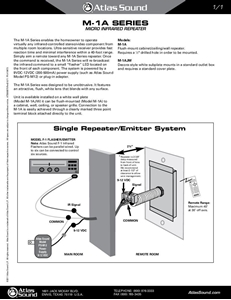

    M-1A Install Sheet (1 page) M-1A Install Sheet (1 page)
    Infrared Repeater System Datasheet (2 pages) Infrared Repeater System Datasheet (2 pages)
