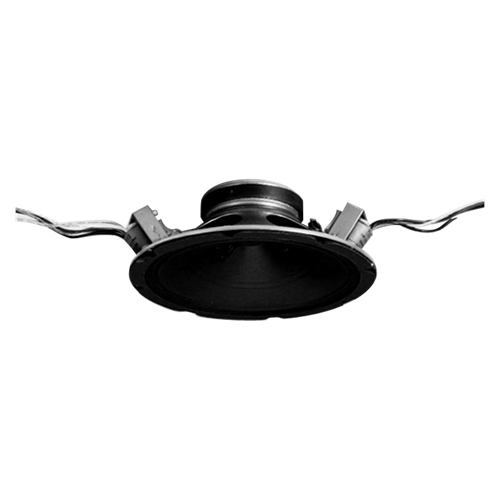

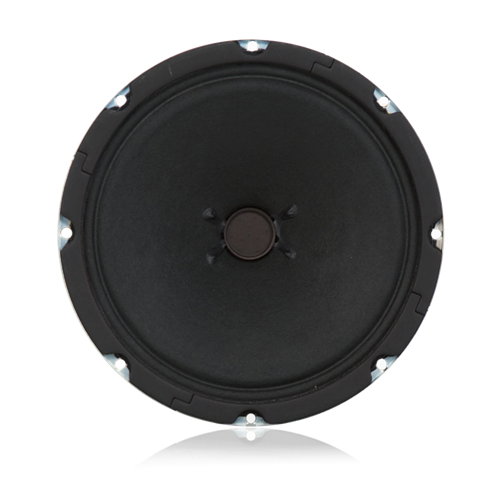

8" Dual Voice Coil In-Ceiling Loudspeaker for Systems Requiring Secondary Supervision

L20-400-7
  • 25V/70V Operation
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 70V / 100V Operation

    Designed for systems requiring secondary supervision using signal presence method. When the primary voice coil is excited the secondary voice coil induces output signal to a separate, dedicated supervisory line indicating "good" voice coil integrity back to the system.

    Use caution when using L20-400-7 for dual source applications (separate amps feeding each voice coil in a paging or music application). No isolation between voice coils is provided (nor possible) so signal bleed between systems is likely.

    SPECIFICATIONS
    Transformer Taps .5, 1, 2, & 5 Watts
    Sensitivity 91dB
    Power Handling 9 Watts
    Frequency Response 100Hz - 10kHz (±5dB)
    Diameter 8" (203.2mm)
    Depth 2.87402" (73mm)
