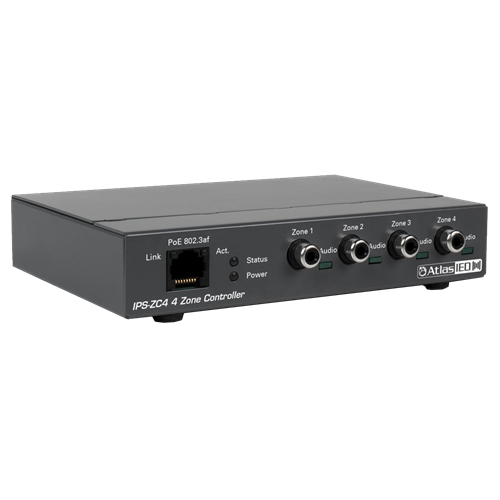

IP-to-Analog Four Zone PoE Gateway (for SIP applications)

IPS-ZC4
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $878.99
  • PoE enabled
  • GCK Optimized
  • Network Ready
  • SIP Compatible

    AtlasIED IPS-ZC4 SIP-to-Analog 4-endpoint zone gateways are perfect for extending communication off network to create analog overhead paging systems for those environments where the SIP servers or VoIP communications managers may not support paging or where 3rd party notification applications are not required.

    AtlasIED IPS-ZC4 SIP–to–Analog gateways can register as SIP devices directly to a SIP server or VoIP communications manager and can provide up to 15 paging groups using its 4-zone outputs. When a caller dials a paging number, the IPS-ZC4 provides a one-way voice path to its analog outputs that have been designated to receive paging.

    When used within a Cisco Environment, this same SIP–to–Analog 4 endpoint zone gateway from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as supported devices within SRST endpoint architecture. Cisco’s SRST provides remote location call- processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability to extend LAN communication between any combination of phones and speakers with visual notifications is particularly critical during an emergency,which may be the actual cause of the WAN outage.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs; anywhere the need for critical alerts/public address exists and a single enterprise-class communications platform is preferred

    FEATURES
    Four Paging Zones
    Fifteen Paging Zone Groups
    PoE 802.3af Enabled
    SIP RFC 3261 Compatible
    Compatible with IP/PBX Servers
    Delayed Paging
    Web-Based Configuration
    SPECIFICATIONS
    Ethernet I/F 10/100 Mbps
    Protocol SIP RFC 3261 Compatible

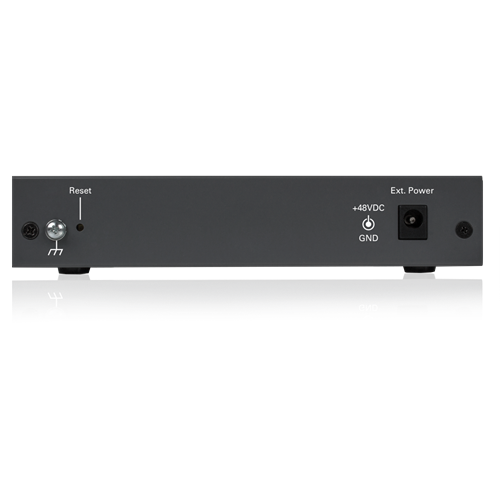

    Power Input PoE 802.3af or 48VDC
    Payload Types G711
    Operating Temperature Range -30° to 55° C (-22° to 131° F)
    Regulatory Compliance FCC Class A, UL 60950
    Output Signal Amplitudes 2.0 VPP Maximum
    Width 6.2" (154.48mm)
    Height 1.22" (30.99mm)
    Output Level +2dBm Nominal
    Total Harmonic Distortion 0.5% Maximum
    Depth 4.5" (114.3mm)
    Weight 1.6 lbs. (0.73kg)
    SUPPORT FILES

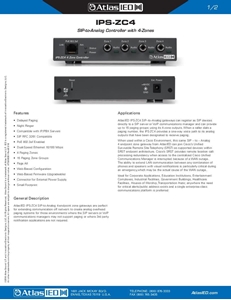

    Data Sheet
    IPS-ZC4 Data Sheet (2 pages)

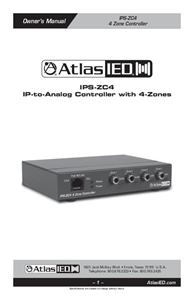

    Owners Manual
    IPS-ZC4 Owners Manual (4 pages)
