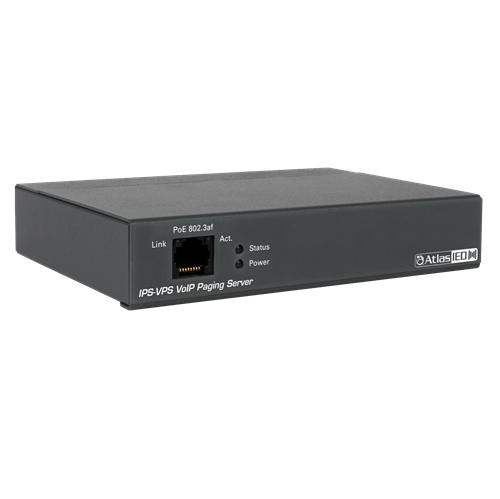

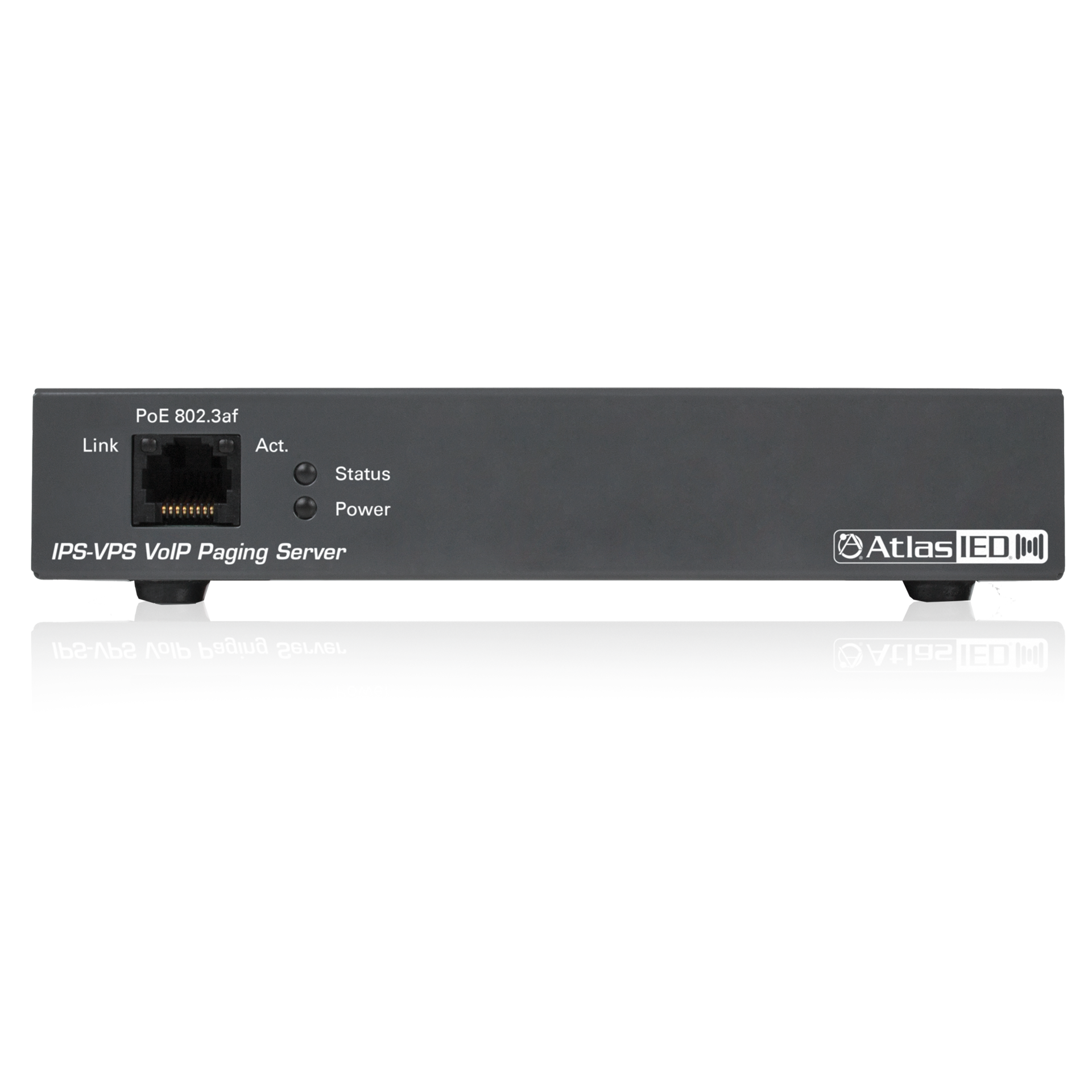

VoIP V3 Paging Server

IPS-VPS
Availability: In stock
Your Price:
$1,296.99
  • PoE enabled
  • Network Ready
    DESCRIPTION

    AtlasIED IPS-VPS is a VoIP paging server that is perfect for creating a group paging solution through multicast transmission for any combination of registered SIP endpoint devices and an analog overhead system in an environment where the paging servers or VoIP communications managers may not support paging groups or where 3rd party notification applications are not required.

    AtlasIED IPS-VPS VoIP paging server connects directly to a SIP server or VoIP communications manager through a single SIP phone extension or line and uses DTMF control for selecting zone groups. When a caller dials a paging number, the IPS-VPS provides a one-way voice path to supported IP phones, SIP devices and/or its analog output that has been designated to receive paging, all while leveraging the WAN/LAN network architecture.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs; anywhere the need for critical alerts/public address exists and a single enterprise-class communications platform is preferred.

    The paging mechanism supports audio distribution using IP multicast, replicated unicast, and a mixture of both (so that multicast is used where possible and unicast is used for specific phones that cannot be reached using multicast).


    Features
    • Page Start Relay Contacts
    • Voice Prompting and Password Controlled Zones
    • PoE 802.3af Enabled
    • Multicast Output
    • Two SIP Endpoints (One for Night Ringer)
    • DTMF Control of Zone Selection

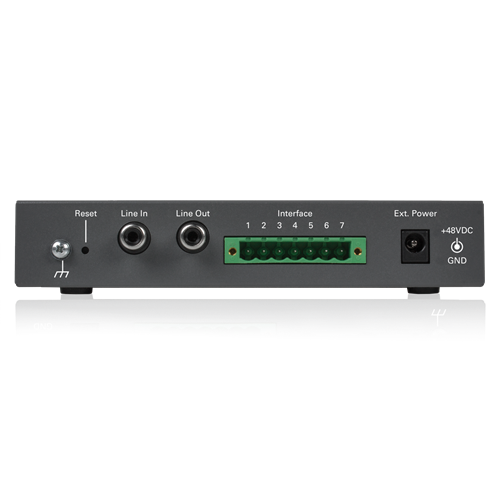

    • Line-In Connection for Background Music Multicasting
    • Line-Out Connection to Support Analog Amps
    • User Uploadable Audio Files
    • Supports 600 ohm Output
    • Delayed Page Support

    SPECIFICATIONS
    Ethernet I/F 10/100 Mbps
    Protocol SIP RFC 3261 Compatible
    Power Input PoE 802.3af or 48VDC
    Payload Types G711
    Operating Temperature Range -30° to 55° C (-22° to 131° F)
    Regulatory Compliance FCC Class A, UL 60950
    Page Port Output Balanced 600Ω 5VPP
    Line In: Input Signal Amplitudes 2.0 VPP Maximum
    Line In: Input Impedance 10kΩ
    Line Out: Output Signal Amplitudes 2.0 VPP Maximum
    Line Out: Output Level +2dBm Nominal
    Line Out: Total Harmonic Distortion 0.5% Maximum
    Line Out: Output Impedance 10kΩ
    Width 6.11" (155.19mm)
    Height 1.15" (29.21mm)
    Depth 4.05" (102.87mm)
    Weight 1.8 lbs. (0.82kg)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    IPS-VPS Quick Start Guide (4 pages) IPS-VPS Quick Start Guide (4 pages)
    IPS-VPS Data Sheet (3 pages) IPS-VPS Data Sheet (3 pages)
