PoE+ Indoor Wall Mount LCD Endpoint with Talkback Microphone and LED Flasher

Availability: In stock
Your Price:
  • CETL
  • FCC
  • Flasher Included
  • LCD Display Included
  • PoE+
  • Enclosure Sold Separately
  • G.711 Capable
  • G.722 Capable

    AtlasIED IP-DMF is an indoor wall mount IP endpoint with LCD display, integrated talkback microphone, and LED flasher. It complements the Unified Communications (VoIP Communications) investment, including on-premises and hosted infrastructure platforms. With the IP-DMF, information can be pushed to people or spaces beyond the limitations of desktop telephony communication, where visual messaging is required to overcome high ambient noise and/or large spaces.

    AtlasIED IP-DMF registers as a communication endpoint directly within Singlewire, AtlasIED, and Syn-Apps' notification applications. It supports audio and/or scrolling text alerts and visual signaling to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules and pre-recorded & scheduled announcements while leveraging the WAN or LAN network architecture.

    The IP-DMF contains a PoE+ powered amplifier that can support up to two analog 8Ω speakers that will enable the IP-DMF to support announcements or intercom.

    AtlasIED IP-DMF supports Call Manager publisher subscriber SIP Service call processing failover. This service provides remote location call-processing redundancy when access to the centralized Call Manager is interrupted because of a WAN outage. In a Cisco UMC environment, IPX devices can register to either Cisco’s basic or advanced 3rd Party SIP device service for intercom or paging functionality. IPX must use Cisco’s Advanced 3rd Party SIP device service when registering to a publisher subscriber configuration.

    Where 3rd party notification applications are not required, the IP-DMF can register as a SIP device directly to a SIP server or VoIP call platforms for critical alerts, intercom, and public address.

    Under Title II of the Americans with Disabilities Act (ADA), all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IP-DMF IP visual endpoint with optional speaker connectivity, LCD display, talkback microphone, and LED flasher provide effective communication for all individuals.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist and prefer using a single enterprise-class communications platform.


    The IP-DMF IP endpoint displays are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the IP-DMF displays time with date and eliminates the need for a separate master clock system by utilizing Network Time Protocol (NTP) to stay up to date. When active, the IP-DMF display changes from time to visual notifications by Scrolling text content over the high resolution LCD.

    When using Singlewire’s InformaCast® or Syn-Apps Revolution® notification applications, the IP-DMF can have its LCD display background colors sync’d to InformaCast® text and audio notification profiles. Customers can now display default color styles set for normal, warning and emergency notifications sending clear communication during any event.

    The LED flashers located below the display can be used to alert room occupants of an incoming scrolling text message in accordance with ADA compliance.

    The IP-DMF features auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    The IP-DMF includes two General Purpose inputs (GPI) and one output (relay) to unify connectivity of third party systems.

    The IP-DMF has local line level inputs that can be used for local sound reinforcement and outputs that can be used to push audio messages to existing audio systems. The Host Application is set as the priority source by default to ensure that critical alerts remain the priority nomatter what current active source is selected.

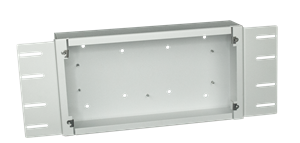

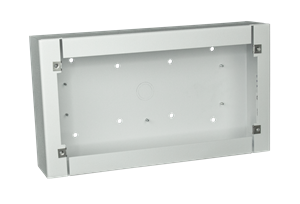

    Mounting hardware: (sold separately)

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!

    • Network Features

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.3aT Compliant
    • Additional Features
    • Audio Codec Support: G.711 u-law / a-law (16kbit/s) and G.722 Wideband Audio (64 kbit/s)
    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Registration: HTTP GUI for Static Configuration
    • Integrated Amplifier with two 8 outputs
    • Aux Audio Line-In Balanced (2.8Vpp 10K)
    • Aux Audio Line-Out Balanced (2.8Vpp 10K)
    • Integrated Microphone Allows for Half-Duplex or Full-Duplex Paging Based on Software Platform Used
    • Network Controlled, High Resolution Multi-Color Liquid Crystal Display

    • LCD for Clock, Date, and Scrolling Text
    • Front Panel Multi-Color LED Flashers Allow for ADA Compliance
    • 1 General Purpose Output (2A @ 30 VDC)
    • 2 General Purpose Inputs
    • External Power Supply Option

    Connector Type RJ45
    Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
    Width 13.89" (352.81mm)
    Height 7.75" (196.85mm)
    Depth 1.73" (152mm)
    Depth 3.25" (82.55mm) Wall Mount
    Depth 3.11" (78.99mm) Flush Mount
    Weight 2.55 lb (1.16kg)
    Shipping Weight 3.46 lb (1.57kg)
    Warranty Period 12 months from date of purchase

    IPX Series Install Sheet (4 pages) IPX Series Install Sheet (4 pages)
    AtlasIED Discover AtlasIED Discover
    IPX Endpoint Firmware Update Guide (1 page) IPX Endpoint Firmware Update Guide (1 page)
    IPX Endpoint Quick Start Guide (3 pages) IPX Endpoint Quick Start Guide (3 pages)
    IPX System Firmware Release 1.8.0 IPX System Firmware Release 1.8.0
    IPX Series Firmware Release Notes (1 page) IPX Series Firmware Release Notes (1 page)
    IPDCM+ CAD Drawing IPDCM+ CAD Drawing
    IPDCM+ Enclosure CAD Drawing IPDCM+ Enclosure CAD Drawing
    IPDCM+ Revit Drawing IPDCM+ Revit Drawing

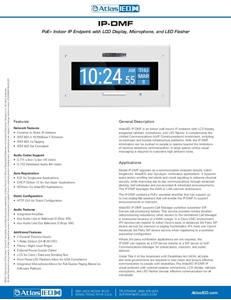

    IP-DMF Data Sheet (7 pages) IP-DMF Data Sheet (7 pages)
