PoE+ IP Compliant IP Dual Sided LCD Endpoint with LED Flasher

IP-DD
Availability: In stock
Your price (USD): $1,488.99
  • Software License Required
  • CETL
  • CE
  • FCC
  • TAA
  • PoE enabled
  • G.711 Capable
  • G.722 Capable
  • Network Ready
  • GCK Optimized
  • Flasher Included
  • LCD Display Included
  • PoE+
  • UKCA
  • Powered
    DESCRIPTION

    The AtlasIED IPX Series IP-DD is an indoor dual sided LCD that can display time as well as scrolling text and leverages the VoIP communication solution to extend notifications with effective visual text alerts for high ambient noise areas or large spaces.

    AtlasIED IP-DD registers as a communication endpoint directly within InformaCast, SA-Announce, and GCK advanced notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN network architecture.

    When used within a Cisco Environment, these same IP dual sided LED displays with speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    The IP-DD can provide audio via its integrated speakers or to support distributed analog public address systems with the convenience of line level audio outputs. This line level output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    It also includes 2 GPI inputs, 1 GPI output, and microphone input for talk back or listen applications. The GPI/O ports offer triggering for critical alert notification or unified connectivity of third party systems.

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    FEATURES
    • Network Controlled, High Visibility LCD Display

    • Network Features

    • Dynamic or Static IP Address
    • Auto Registration and Auto Provisioning
    • IEEE802.3 10/100Base-T Ethernet
    • Multicast Enabled Network Clock Control
    • Cisco SRST compliant
    • Power Using IEEE802.3af Compliant PoE+ Switch or Local 12VDC-18VDC PSU
    • RJ-45 Female Input on PCB
    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Registration: HTTP GUI for Static Configuration
    • External Power Supply Option

    SPECIFICATIONS
    Width 19.94 (506.5mm)
    Height 9.9" (251mm)
    Depth 7" (177mm)
    Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

    SUPPORT FILES

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!

    Data Sheet

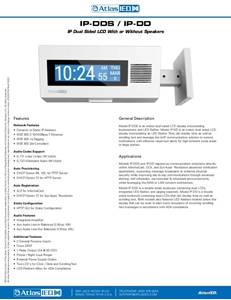

    ATS005792E_IP-DDS_IP-DD_Data_Sheet
    Certificate Of Quality Compliance
    CE-Declartion_IP
    Certificate Of Quality Compliance
    IP_CB-Certification
    Certificate Of Quality Compliance
    IP-XX ATM
    Certificate Of Quality Compliance
    UK-Declartion_IP.01192021
    Installation Sheet
    IPX Endpoint Speakers
    Firmware Release Notes
    ATS006206 IPX Firmware 1_3_1_0 Release Notes
    Firmware
    AtlasIED_IPX_System_Release_1.3.1.0.tgz
    Installation Sheet

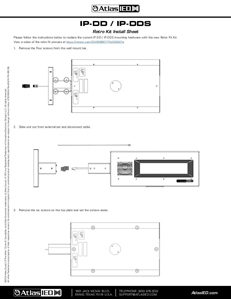

    ATS006024B_IP-DDS_IP-DD_Retro_Kit_Install_Instructions
    Product Overview
    IPX Product Overview
    Firmware Update Guide
    ATS006060B AtlasIED Discover Quick Start Guide
    Discover Application and Firmware
    AtlasIED_Discover_App_IPX_Firmware_1.3.1.0.exe
    Quick Start Guide
    IPX_Endpoint_Quick_Start_Guide
    FAQ Sheet
    ATS006034B IPX Endpoint FAQ
