PoE IP Console with Gooseneck Mic and Handset

Your Price:
  • CE
  • FCC
  • PoE enabled
  • SIP Compatible
  • G.711 Capable
  • G.722 Capable
  • Touch Control

    The AtlasIED IP-CONSOLE-GH is a VoIP communications console equipped with a large 10.1-inch color touch screen, gooseneck microphone, handset and built-in speaker that is used in the IPX Unified Communication ecosystem. The AtlasIED IP-CONSOLE-GH registers directly with Singlewire's InformaCast® notification application, to serve as the systems network Administrative Display Phone or Master Paging Station.

    The gooseneck microphone, built-in speaker and graphical user-friendly interface allow the operator to select any or all zones for live day-to-day announcements or a single zone for two-way communication. The operator can also choose to select a single zone and use the handset for private intercom sessions.

    The IP-CONSOLE-GH supports configuring up to 112 virtual DSS (Direct Station Selection) keys each key with its own custom color and naming scheme to match the InformaCast® Fusion Command Center’s button design that is synced to user defined color styles for InformaCast® normal, warning and emergency notifications.

    Its large 10.1-inch color touch screen graphical, user-friendly, interface makes it easy to navigate through the configured virtual DSS (Direct Station Selection) keys and launch InformaCast’s programed critical alerts, manual bells, pre-recorded and scheduled events for fast and clear communications with AtlasIED's IPX Series speakers.

    The AtlasIED IP-CONSOLE-GH can also register as a SIP phone directly to a SIP server or VoIP Communications Manager including on-premise and hosted infrastructure call platforms and supports 20 SIP lines.

    • Network Features

      • Dynamic or Static IP Address
      • IEEE 802.3 10/100/1000 Base-T Ethernet
      • IEEE 802.3af Compliant
      • Dual Bridged Port for PC Bypass
      • Built-in 2.4G / 5G Wi-Fi
      • IPv6
    • Audio Codec Support

      • G.711 u-law / a-law (16kbit/s)
      • G.722 Wideband Audio (64 kbits/s), Opus

    • Video Codec Support

      • H.264/H.265 (optional) 780P/1080P

    • Auto Registration

      • SLP or DNS-SRV for Singlewire Applications
      • AtlasIED Discover tool
    • Static Configuration

      • HTTP GUI for Static Configuration
    • Additional Features

      • 10.1" 1280x800 color touch screen
      • Programmable 112 one-touch virtual DSS keys
      • Supports 20 SIP lines
      • Compatible with most major call platforms (e.g., Asterick®, Broadsoft®, 3CX®, Metaswitch®, Elastix®, Avaya®, and others)
      • Built-in Bluetooth 5.0
      • Direct to IPX communication using multi-cast
      • On-board Gooseneck Mic, Handset, and conference speaker
      • Stand with 2 adjustable angles of 40 and 50 degrees

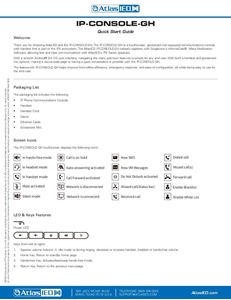

    IP-CONSOLE-GH Quick Start Guide (8 pages) IP-CONSOLE-GH Quick Start Guide (8 pages)
    IP-CONSOLE-GH Firmware Update Guide (1 page) IP-CONSOLE-GH Firmware Update Guide (1 page)
    IP-CONSOLE-GH Firmware V2.6.0.1499.18 IP-CONSOLE-GH Firmware V2.6.0.1499.18

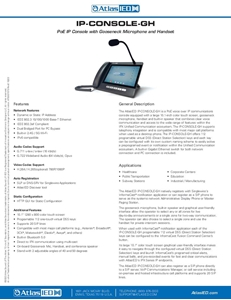

    IP-CONSOLE-GH Data Sheet (6 pages) IP-CONSOLE-GH Data Sheet (6 pages)
