GLOBALCOM® Relay Interfaces

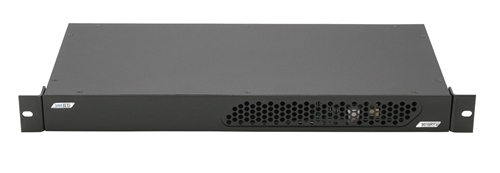

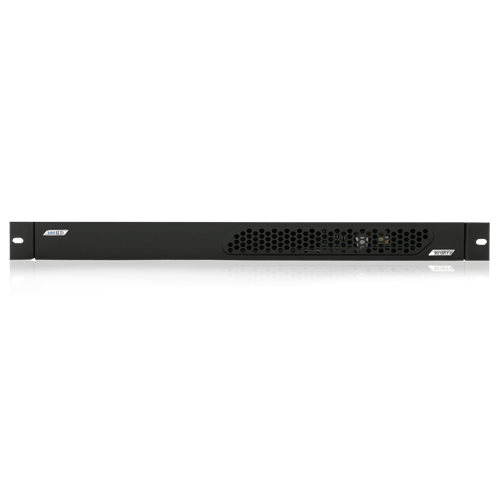

    Model T9016RY is a 16-Channel Relay Interface that is a component of the IED Titan Series of digital distribution products. The relays are Form C, and are used for general purpose applications such as zone output switching to override volume controls in paging zones or zone output relays to trigger external lights and strobes.

    These devices mount in a 19-inch equipment rack/cabinet, taking up only 1 rack unit (RU), or 1.75" of vertical space. It is a low power device which utilizes natural cooling. No additional vertical space is required in the rack for cooling. The mainframe has removable rack mounting ears, which may alternately be placed near the bottom of the mainframe for ease in mounting the unit on a wall, such as in a telephone closet, or on the back for rear rail mounting reinforcement.

    The T9016RY 16-Channel Relay Interface unit links into a system through an Ethernet network connection.

    The standard method of powering the collectors is through Power over Ethernet (PoE) from an IEEE 802.3af compatible Ethernet switch. They can also be powered using a Mid-Span power supply or an external 48 VDC local power supply, both purchased separately.

    • Available in 16-channel relay interface
    • Form C relays used for general purpose applications
    • Link to GLOBALCOM® system via Ethernet
    • Powered via Midspan power supply or external 48VDC local power supply

    Relay Contacts 0.5A, Load Supply Voltage
    Operating Temperature Range (+32°F to +122°F) 0°C to +50°C
    Relay Contacts 1.0, Load Supply Voltage
    Relay Contacts 0.3A, Load Supply Voltage
    Power Supply Voltage 48VDC
    Power Supply 10-Watts Power, T9016RY
    Power Supply 12.5-Watts Power, T9032RY
    Storage Temperature Range (-40°F to +158°F) -40°C to +70°C
    Width 19" (483mm) with rack ears
    Height 1.75" (44.5mm)
    Depth 17" (442mm)
    Width 6.9 lbs. (3.13kg)
    Warranty Period 36 months from date of purchase

    T9016RY / T9032RY Datasheet (1 page) T9016RY / T9032RY Datasheet (1 page)
