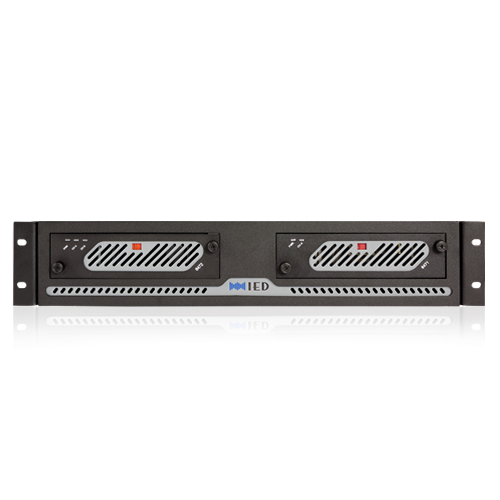

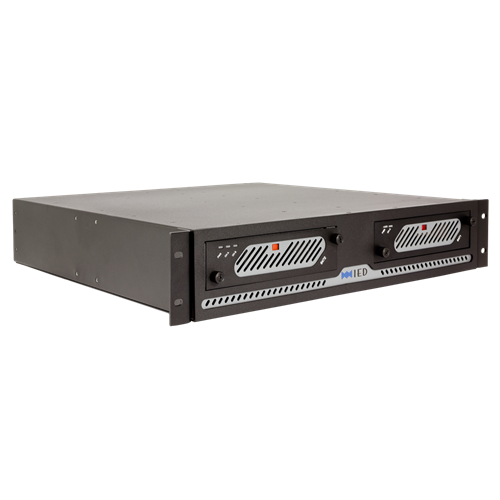

The Model T6400 2-Card Power Amplifier Mainframe is designed to house, supply power to and cool up to two Titan series power amplifier cards. The mainframe is designed to mount in a 19-inch equipment rack/cabinet, taking up only 2 rack units (RUs) of space or 3.5” of vertical space. All cooling is back to front, so no additional vertical space is required in the rack for cooling. The mainframe has removable rack mounting ears, which may alternately be placed near the bottom of the mainframe for ease in mounting this unit on a wall, such as in a telephone closet, or on the back for rear rail mounting reinforcement.

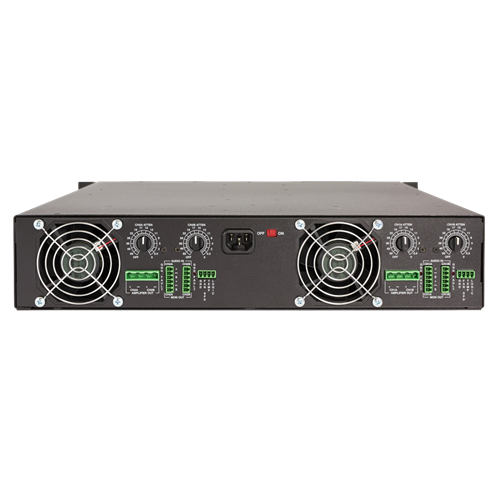

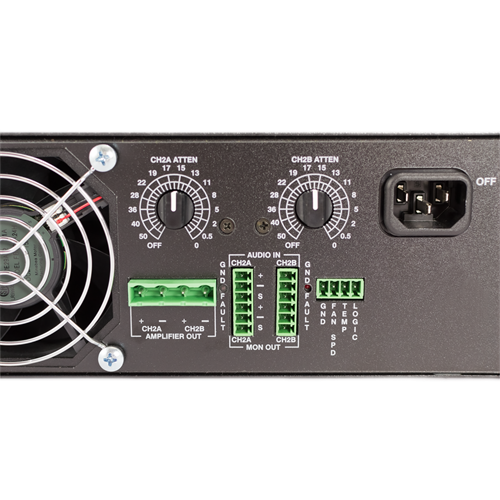

The mainframe has connections for audio inputs and loudspeakers, as well as status monitoring outputs such as fan speed, amplifier (heatsink) temperature and amplifier status signals. The fan speed and temperature outputs are voltages whose values are proportional to speed or temperature, respectively. The mainframe also has individual input level controls for each of the possible 4 channels. The audio inputs on the back are made via plug-in lugless compression-type screw terminals. Also, the loudspeaker connections are made via larger scale terminals of the same type. The power amp cards slide in from the front and have individual power switches on the front along with power and signal presence LEDs.
Compatible Amplifier Card Models Include:
- T6472 Dual 200 Watt, 70 Volt
- T6471 Single 400 Watt, 70 Volt
- T6412 Dual 200W, 100 Volt
- T6411 Single 400 Watt, 100 Volt
- T6482 Dual 200 Watt, 8 Ohm
- T6481 Single 400 Watt, 8 Ohm
- T6441 Single 400 Watt, 4 Ohm
- T6002 Dual Channel Line Driver Card
