2-Channel Line Driver (120V)

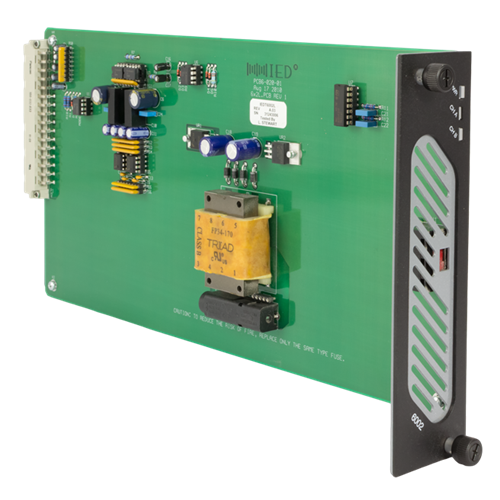

    The IED Model T6002 is a member of the Titan® Series Digital Distribution System. It is a 2-channel line driver module that can be installed in a T9160 Integrated Power Amplifier Mainframe or a T6400 2-card Power Amplifier Mainframe.

    The IED Model T6002 2-channel line driver has two low impedance, balanced, floating, active outputs which are designed to drive very long lines. Its transformerless output design provides wider bandwidth while minimizing distortion at all frequencies. The result is improved overall system performance while maintaining cost efficiency.

    In some applications, the T9160 Integrated Power Amplifier Mainframe is required to drive mixed speaker loads, such as groups of speakers operating from a 70 V line and others being self-powered and requiring line-level input signals. The T6002 can provide line level outputs, while the Titan Series power amplifier cards drive the conventional distributed speakers. Both can be operated simultaneously in the T9160 Integrated Power Amplifier Mainframe.

    Maximum Input Signal +24dBu
    Signal to Noise Ratio >100dB
    Maximum Output Level +24dBu
    Total Harmonic Distortion .0006% (2 kHz input, Max. Output, 10 Hz – 22 kHz filters)
    Operating Temperature Range +32°F - +122°F (0°C - +50°C)
    Input Sensitivity +24dBu
    Frequency Response +0dBU, -0.2dBu
    Input impedance 10kΩ
    Output impedance <0.5Ω
    Crosstalk <-65dB
    Input Power 5-Watts
    Voltage 120V
    Height 6.8" (173mm)
    Width 1.8" (46mm)
    Depth 12.5" (317.5mm)
    Weight 4.0 lbs. (1.8kg)
    Storage Temperature Range -40°F - +158°F (-40°C - +70°C)

    T6002 Datasheet (1 page) T6002 Datasheet (1 page)
