4x4 Smart Zone Output Processor

IED1544ZOP
MSRP (USD): $3,556.99
  • GCK optimized
  • Dante Network Enabled
  • Power Supply Sold Separately
  • Rack Kit Sold Separately
    DESCRIPTION

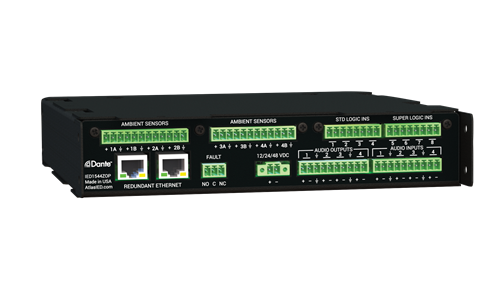

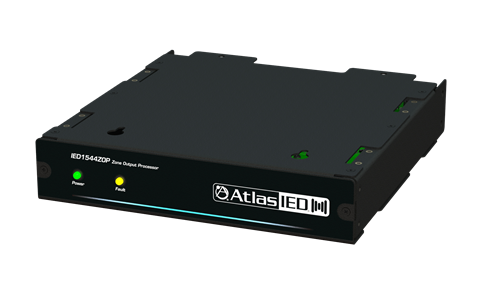

    The 1544ZOP 4x4 Smart Zone Output Processor provides all the network audio routing and zone digital signal processing functions of a DNA2404D integrated network amplifier unit. This includes Dante® network audio input, equalization, level control, and IED’s patented AlwaysHEARsmart ambient analysis automatic level adjustment. AlwaysHEAR. ensures the audio levels are automatically adjusted to always be set at the perfect sound level. The 1544ZOP provides four line-level balanced analog audio outputs for driving external amplifiers or powered line arrays. The 1544ZOP integrates with AtlasIED’s GLOBALCOM®.IP announcement controller, or may be used in stand-alone applications. Optionally, the processed zone output audio may be routed back out over the network as Dante digital audio.

    In addition to the four zone outputs, the 1544ZOP has four balanced line-level analog inputs that may be used as automated test inputs associated with the four zone outputs. Alternately, the analog inputs may be routed out over the network as Dante digital audio for such uses as for background music or auxiliary audio sources.

    The 1544ZOP also provides eight (8) logic inputs. Four of the inputs are standard closure detection and four are supervision capable, which provides the additional means to detect open or short conditions on the incoming links.

    Inputs are provided for connecting up to eight (8) 540S ambient noise sensors (2 sensors for each output channel). This allows the output of each channel to be automatically adjusted in real time based on the measured ambient noise level in the zone.

    The 1544ZOP may be configured from the GLOBALCOM.IP System Management Center (SMC) or via the open-standard SNMP (Simple Network Management Protocol).

    Optional Accessories Sold Separately

    IED1112MPS-MOD, single unit power supply

    IED1112PS rack mount, 5-output power supply, with optional redundant supply


    FEATURES
    • Four Balanced Line Level Audio Inputs

    • Four Balanced Line Level Audio Outputs

    • Four Standard Logic Inputs

    • Four Supervised Logic Inputs

    • Eight Ambient Sensor Inputs

    • Supports Audinate’s Dante™ Digital Network Audio

    • Compatible with AtlasIED GLOBALCOM® Systems and 3rd Party Dante™ Devices

    • 7-band Parametric EQ and a High-Pass and Low-Pass Filter Per Channel

    • Built-In Supervision of External Equipment or Speaker Lines May Be Configured

    • Fault Reports and Amplifier Status Available Over Ethernet Using Standard SNMP Protocol

    • LED Indicators for Power and Faults, Plus a Fault Relay (Form C)

    • Two Inputs for Ambient Noise Sensors for Each Amplifier Output Channel


    SPECIFICATIONS
    Frequency Response ±0.3 dB, 20 Hz - 20 kHz Unweighted
    THD <0.01%, 20 Hz - 20 kHz Unweighted
    Signal to Noise Ratio >90 dB, 20 to 20kHz, Unweighted
    Level Control Per Input/Output Channel
    EQ Control 7 Parametric Plus High-Pass & Low-Pass Per Channel
    Power Requirements 2-pin Lugless Compression-Type (Nominally Use 12, 24 or 48V Supply) Screw Terminal Max Power
    Height 1.75" (44 mm)
    Width 8.5" (216 mm)
    Weight 3.25 lbs (1.5kg) 3.75 lbs (1.7kg) with rack ears
    Depth 8.9" (226 mm)
    Warranty Period 36 months from date of purchase

    SUPPORT FILES

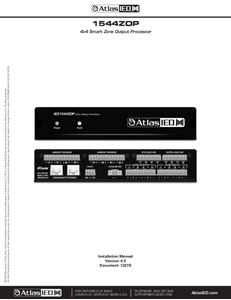

    1544ZOP Installation Manual 1227B (14 pages)

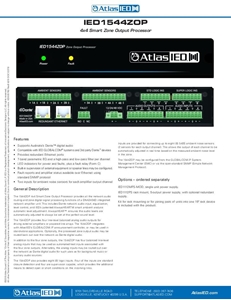

    IED1544ZOP Data Sheet (4 pages)
