4-Channel Backup Amplifier Switch

Your Price:
  • PoE Enabled
  • Network Ready

    The 1544BAS is a backup amplifier switching module capable of switching up to four (4) speaker loads from a primary power amplifier to a backup when a failure is detected. In stand-alone mode, logic outputs from the primary amplifier are used to trigger the switching of each individual channel to the backup amplifier. In network control mode, switching is determined by the IED GLOBALCOM® system supervision sub-system. In network control mode, multiple 1544BAS units can be used to switch multiple primary amplifiers to a single backup amplifier unit. When used in this manner, all switching logic is accomplished through network commands and the logic inputs are not used.

    The 1544BAS is powered using standard PoE and draws a maximum power of 3 watts. If PoE equipment is not used or the unit is used in stand-alone mode, an input is provided for an external +48VDC power supply. A green power indicator LED is included to show that the unit is powered on. Each channel has a yellow LED indicator that illuminates when the channel is switched to the backup amplifier input.

    When not in network control mode, each channel can be switched to the backup using a contact closure on the corresponding logic input.

    The 1544BAS is provided in an enclosure that either mounts to a DIN rail or is screwed down on a panel or wall to allow for convenient installation close to the amplifiers in the equipment rack.

    Input Voltage Range 48VDC (PoE Compliant with IEEE 802.3af)
    Operating Temperature Range –22˚F – +149˚F (–30˚C – +65˚C)
    Power 4-Watts Max
    Max Current 8 Amps
    Height 7.01" (17.81cm)
    Width 3.50" (8.90 cm)
    Depth 2.00" (5.08 cm)
    Weight 9.6 oz (272 g)
    Warranty Period 36 months from date of purchase

    1544BAS Installation Instructions (22 pages) 1544BAS Installation Instructions (22 pages)
    IED1544BAS CAD Drawing IED1544BAS CAD Drawing

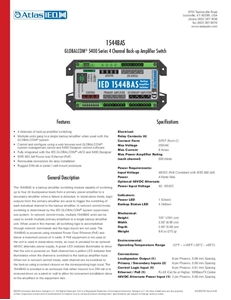

    1544BAS 4-Channel Backup Amplifier Switch Datasheet (1 page) 1544BAS 4-Channel Backup Amplifier Switch Datasheet (1 page)
