IED1522LR 2 Logic Input x 2 Relay Output IO Device

Your Price:
  • Software License Required

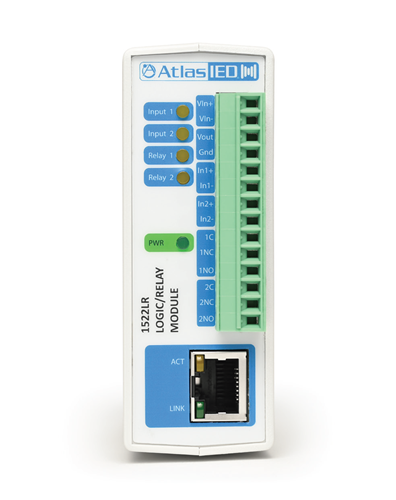

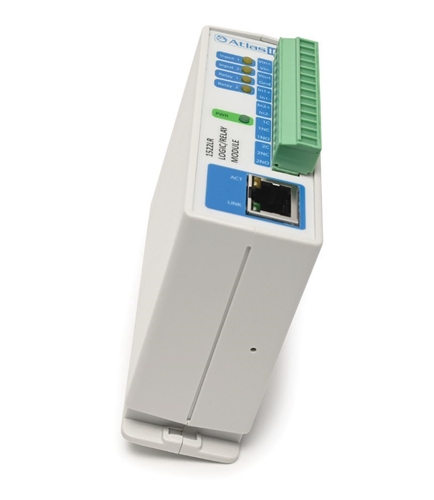

    The IED1522LR Logic / Relay Module is a cost effective interface module that operates as an integral part of an AtlasIED GLOBALCOM® system. It is a web-enabled, programmable relay device for a wide variety of remote control and automation applications. It has two electro-mechanical relays and two optically-isolated inputs.

    The relays can be controlled remotely using actions configured in the GLOBALCOM® GCK Application and 5400 Designer control software. The optically-isolated inputs can be used to trigger actions or as logic monitor points that will register faults in the system. The module receives its power over IEEE 802.3af PoE and communicates with other system devices over the Ethernet network.

    If you have the prior version of the IED1522LR with the "IED" logo (instead of the newer "AtlasIED" logo), please click here for the relevant documentation.

    • Two electro-mechanical relays
    • Two optically-isolated inputs
    • Utilizes IEEE Power over Ethernet (PoE)
    • Control and configure using a web browser, GLOBALCOM® 5400 Designer Software, and GCK
    • Settings stored in non-volatile memory
    • Fully supervised system voltage and internal temperature monitoring
    • Rugged Din-rail mount enclosure

    Voltage 48 VDC (PoE)
    Operating Temperature Range –22˚F – +149˚F (–30˚C – +65˚C)
    PoE Power Consumption < 3.84 W
    Inputs 14 Position Removable
    Rack Units RJ45
    Height 3.88" (9.85 cm)
    Width 1.41" (3.57 cm)
    Depth 3.10" (7.80 cm)
    Weight 5.5 oz (156 g)
    Warranty Period 36 months from date of purchase

    IED1522LR R2 Quick Start Guide (3 pages) IED1522LR R2 Quick Start Guide (3 pages)
    IED1522LR Data Sheet (4 pages) IED1522LR Data Sheet (4 pages)
