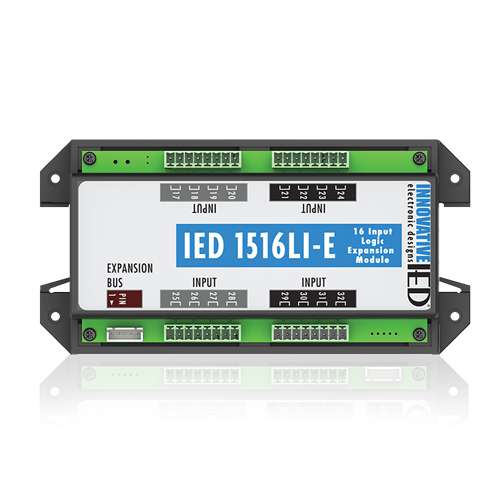

16 Input Logic Expansion Module

IED1516LI-E
  • Software License Required

    The 1516LI-E is a 16 input expansion module that connects directly to a 1516LI to bring its total input capacity up to 32 inputs that can be driven using dry contact closures or 0 to 50VDC logic signals. A green LED is provided above each input that illuminates when activated. The announcement controller is configured using the GLOBALCOM® System Management Center software where logic inputs can be used to launch announcements, pre-recorded messages, events, or fault reports.

    The 1516LI-E receives its power through its connection to the 1516LI. The 1516LI-E connects to the 1516LI through the supplied 5-conductor expansion cable.

    FEATURES
    For use with the IED1516LI to expand optically-isolated inputs to 32
    16 optically-isolated inputs to interface with external equipment such as fire panels, security systems, etc.
    Control and configuration using a web browser and GLOBALCOM® System Management Center
    Settings storage in non-volatile memory
    Full integration with the IED GLOBALCOM® vACS
    SPECIFICATIONS
    Power 1-Watt Max
    Inputs 8-pin Phoenix, 3.81 mm spacing
    Operating Temperature Range –22˚F – +149˚F (–30˚C – +65˚C)
    Height 7.01" (17.81 cm)
    Width 3.50" (8.90 cm)
    Depth 2.00" (5.08 cm)
    Weight 7.3 oz (206.9g)
