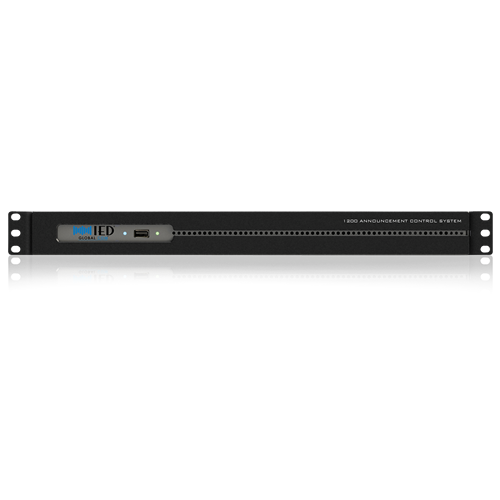

1200CPU GLOBALCOM® Server

IED1200CPU

  • CobraNet enabled
  • Network Ready
  • GCK Optimized
    DESCRIPTION

    The 1200CPU is capable of handling the functions of any one of the following software applications, 1000vACS, 1000MSG, 1000TEL, or 1000DCI in a GLOBALCOM® system. The 1200CPU is not capable of running the T-CAS, FAS, or Prizm Client software packages. The 1200CPU includes the Windows® 7 embedded operating system with an Intel® Atom 1.6GHz processor, 2GB DDR3 memory and a 40GB hard drive. The unit also features an 8 input x 8 output CobraNet® digital audio sound card and VGA/DVI video output. Additionally, the 1200CPU includes 8 (10-pin Phoenix) logic inputs and 8 (10-pin Phoenix) relay outputs.






    SPECIFICATIONS
    Operating System Windows® 7 Embedded Standard
    Sample Rate 8 (12-pin Phoenix)
    Processor 2GB
    Display Type 40GB
    Ethernet Connector 8 Input x 8 Output CobraNet® Card
    Network Requirement 1 VGA/DVI
    Rack Units 1 x 1GB Network Adapters, 2 x 100MB Digital Audio Adapters
    Operating Voltage 5 (1 Front, 4 Rear)
    Power Supply 12V DC
    RAID Intel® Atom 1.6GHz
    Power Consumption 8 (10-pin Phoenix)

    SUPPORT FILES
    1200ACS and 1100ACS Data Sheet (2 pages) 1200ACS and 1100ACS Data Sheet (2 pages)
    1200ACS and 1100ACS Install Sheet (16 pages) 1200ACS and 1100ACS Install Sheet (16 pages)
