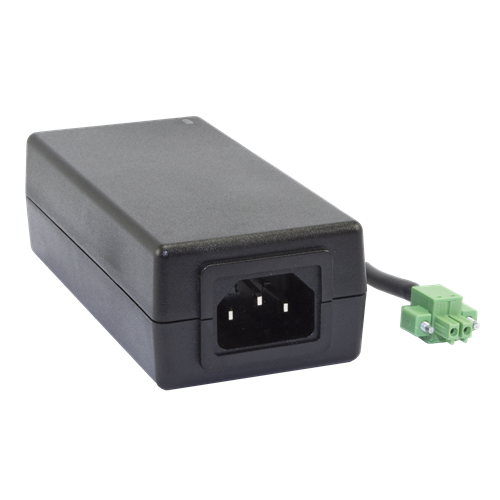

In-Line Modular Power Supply

Name: In-Line Modular Power Supply
Brand: AtlasIED
SKU: IED1112PSD
Rating: 5 (5 reviews)

IED1112PSD

Your Price:

$296.99

DESCRIPTION

The 1112PSD is a small modular power supply designed to provide 12V DC power to individual GLOBALCOM devices. The 1112PSD is included as the default power module for the IED1100, IED1200, IP100 and IED1100DAB series devices. The module is capable of delivering up to 4 Amps of 12VDC power to a single GLOBALCOM device. The small form factor allows for a variety of mounting options for the module.

Features

Provides 12V DC to individual GLOBALCOM® devices
Internal current limiting to prevent equipment damage
Over voltage and short circuit protection
Efficiency >81% at full load
Universal input voltage for worldwide use
Small modular design

SPECIFICATIONS

Power Supply Voltage	100 - 240VAC (50-60Hz)
Operating Temperature Range	32 ˚F – 113 ˚F (0 ˚C – 45 ˚C)
Rated Input Current	1.2 Amps Max
Rated Output Voltage	+12VDC (±1%)
Rated Output Current	4 Amps
Storage Temperature Range	–4 ˚F – 185 ˚F (–20 ˚C – 85 ˚C)
Input Connector	IEC 60320 Type C-13
Output Connector	2-Pin Phoenix, 3.81mm Spacing
Height	1.5" (3.8cm)
Width	2.4" (6.0cm)
Depth	4.7" (12.0cm)
Weight	10.9 oz (310g)
Warranty Period	36 months from date of purchase

SUPPORT FILES

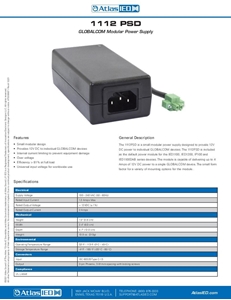

1112PSD Datasheet (1 page)

View | Download
