GLOBALCOM® Digital Audio Bridge

Picture of CobraNet to CobraNet
CobraNet to CobraNet
SKU: IED1100DAB
Your Price:
$8,972.99
Picture of CobraNet to Dante
CobraNet to Dante
SKU: IED1100DAB-CD
Your Price:
$8,972.99
Picture of Dante to Dante
Dante to Dante
SKU: IED1100DAB-DD
Your Price:
$8,972.99
  • CobraNet enabled
  • Dante enabled
  • Network Ready
    DESCRIPTION

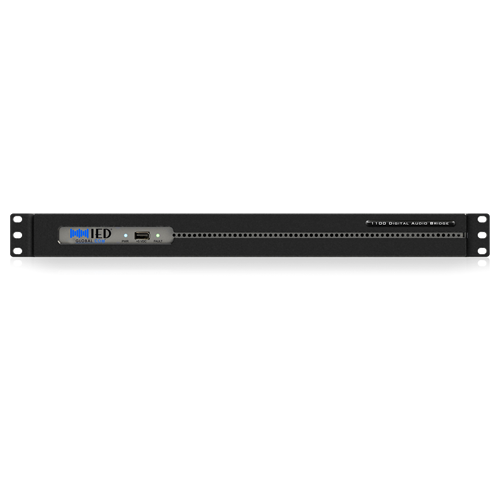

    The IED1100DAB Digital Audio Bridge provides ultra low latency, multi channel audio bridging for GLOBALCOM® controller systems. Each 1 RU chassis features dual redundant Gigabit Ethernet links, seamlessly configurable via GCK. Designed for adjacent audio zones, it ensures synchronous audio transport across CobraNet® and Dante® infrastructures eliminating echo and timing delays.

    3 Models Available

    IED1100DAB (CobraNet > CobraNet)

    Supports 8×8 CobraNet channels to bridge multiple CobraNet GLOBALCOM controllers, delivering deterministic millisecond-level latency.

    IED1100DAB CD (CobraNet > Dante)

    Supports 8×8 channels, linking a CobraNet GLOBALCOM controller to a Dante GLOBALCOM controller, maintaining tight sync and minimal latency.

    IED1100DAB DD (Dante > Dante)

    Supports 16×16 Dante channels, connecting two Dante GLOBALCOM controllers with ultra low microsecond-scale latency.


    Features
    • Ultra Low Latency & Synchronization – Ensures tight audio alignment with millisecond (CobraNet) or microsecond (Dante) precision, avoiding audible echo in adjacent zones.
    • Dual Redundant Ethernet – Provides network reliability and coexistence with standard data traffic, ensuring uninterrupted audio delivery.
    • Seamless GLOBALCOM Integration – Fully compatible with CobraNet and Dante GLOBALCOM controllers, easily configured and managed through GCK.
    • Legacy-to-Dante Migration – The CD model enables smooth protocol transition from CobraNet to Dante without sacrificing timing accuracy.
    • High-Channel Dante Systems – The DD model supports large Dante-based installations requiring expanded audio capacity and microsecond scale latency.

    Applications
    • Airports
    • Mass Transit
    • Large Campus

    SPECIFICATIONS
    Power Supply Voltage 12VDC
    Rated Input Current IED1100DAB - 400mA (4.8 W)
    IED1100DAB-CD - 583mA (7.0 W)
    IED1100DAB-DD - 767mA (9.2 W)
    Power Connector 1x Removable Locking Euroblock
    2 Pin 3.81mm Pitch
    Ethernet Connector 4x RJ-45 Jacks
    2 Pair Redundant Digital Audio
    Speed: 100Mbps
    Rack Mount Requirements 1RU, 19"
    Unit Dimensions (without Rack Ears) (HxWxD) 1.75“ x 17“ x 12.25“ (45mm x 432mm x 311mm)
    Unit Dimensions (with Rack Ears) HxWxD 1.75“ x 19“ x 12.25” (45 mm x 483mm x 311mm)
    Height 1.75" (4.45cm)
    Width 17" (43.2cm)
    Depth 12.25" (31.1cm)
    Weight 10.85 lb. (4.92kg)

    SUPPORT FILES
    IED1100DAB - Digital Audio Bridge - Data Sheet IED1100DAB - Digital Audio Bridge - Data Sheet
