600-Watt 70.7V Line Transformer

HT600

    The HT600 is a high power-handling transformer with minimal insertion loss and wide frequency response that provides quality line matching of loudspeakers in high power sound systems.

    The unit is constructed using audio grade laminations and offers primary taps at 150, 300, and 600-watts with secondary impedance settings for 4Ω and 8Ω. Insertion loss does not exceed 2dB and operates within a frequency range of +1dB from 30Hz – 15kHz.

    The transformer is designed for external mounting to surfaces other than the loudspeaker.

    Optional weather resistant enclosure HT-ENC



    Features
    Constructed Using Audio Grade Laminations
    Frequency Response is 30Hz - 15KHz
    High Power Handling
    High Quality Matching Transformer with Only 2dB Insertion Loss
    Primary Taps of 150, 300, & 600-Watts
    Secondary Outputs Offer Both 4Ω & 8Ω Impedance
    Tech Specs
    Frequency Response 30Hz - 15KHz
    Height 3.08" (7.82cm)
    Width 3.785" (9.61cm)
    Power Taps 150, 300 & 600 Watts
    Power Rating 600W
    Depth 3.49" (8.86cm)
    Primary Voltage 70.7V
    Shipping Weight 6.218 lbs (2.83kgs)
    Support Files

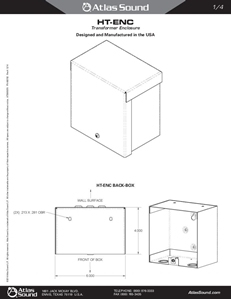

    Installation Sheet HT-ENC Install (4 pages) View | Download

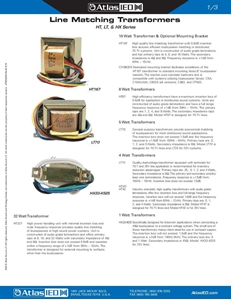

    Data Sheet ATS002294 Line Matching Tranformers Datasheet RevE (3 pages) View | Download

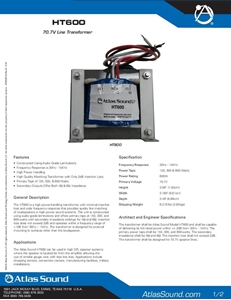

    Data Sheet ATS005126 HT600 Datasheet (2 pages) View | Download
