8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle

HD72W
Availability: In stock
Your Price:
$56.99
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

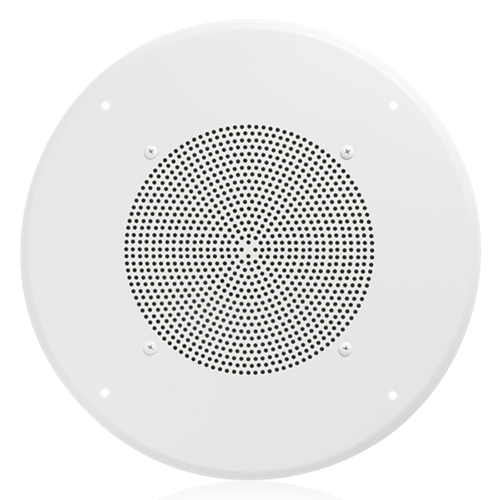

    Model HD72W is a cost effective assembly that include high-quality 8" speaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.

    The HD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

    The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz - 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.


    Features
    • Attractive White Finish
    • Easy to Order Speaker/Transformer/Grill Assembly
    • Suited for Any Commercial Paging or BGM Application

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .25, .5, 1, 2, & 4 Watts
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.50 lbs (2.04 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FD/EZFD & HD/EZHD Series Datasheet (2 pages) FD/EZFD & HD/EZHD Series Datasheet (2 pages)
