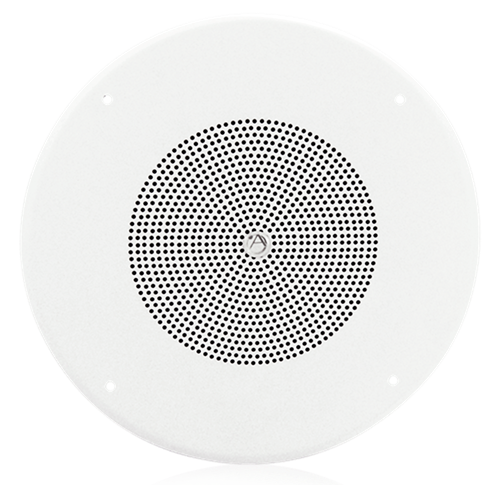

8" In-Ceiling Speaker with 5-Watt 70V Transformer and 62-8 Baffle

HD70W
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $43.99
  • UL Listed
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    Model HD70W is a cost effective assembly that include high-quality 8" speaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.

    The HD70W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD70W includes a factory mounted 70V transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz to 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.

    This industry favorite is aesthetically pleasing and constructed of 24-gauge CRS finished in textured white epoxy.


    FEATURES
    • Attractive White Finish
    • Easy to Order Speaker/Transformer/Grill Assembly
    • Suited for Any Commercial Paging or BGM Application

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.50 lbs (2.04 kgs)
