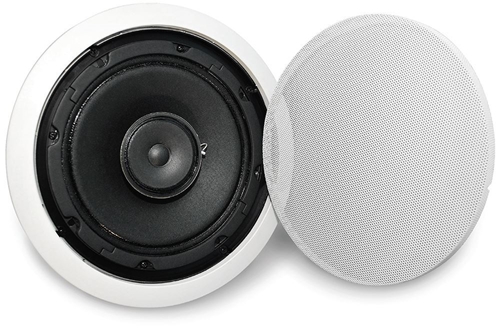

8" Coaxial 16 Watt Speaker

GD87A

Only available in Asia

  • UL Listed
  • 70V / 100V Operation
  • Non-Powered
    DESCRIPTION

    PLEASE NOTE: This product is stocked and shipped from your warehouse in China. This product is ONLY available for sale in Asia.

    The speaker used in the GD87A package is the next generation of Atlas high performance coaxial 8" cone loudspeakers, very similar to the C803A Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the C803A Series in the past will know exactly what to expect when they purchase the GD87A.

    The easy to use GD87A "dog leg" mounting system works with several popular Atlas Sound hardware combinations for use in new or existing drywall or acoustic ceilings.


    Features
    • Industry Standard 8" (203mm) Coaxial, 8 Watt, Loudspeaker
    • Offers Proven Performance with Wide Frequency Response
    • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
    • Attractive Weld Stud Baffle
    • Quality 8 Watt 70.0V Transformer
    • Safety Listed to UL 1480 & UL 2043

    SPECIFICATIONS
    Speaker Type 8" Coaxial
    Magnet Weight 10oz (283g)
    Frequency Response 55Hz - 15kHz (±7dB)
    Peak Sensitivity (1W / 1M) 98dB
    Average Sensitivity (1W / 1M) 96dB
    Power Handling 16 Watts RMS
    Transformer 70.7V
    Transformer Taps 1, 2, 4, & 8 Watts
    Baffle Included
    Finish White
    Mounting Depth 3.45" (87.63mm)
    Bezel Diameter 10.710" (272mm)
    Cut Out Diameter 9.437" (239.7mm)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

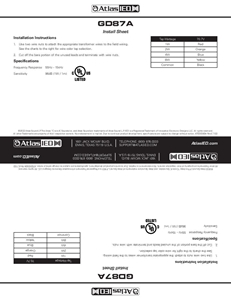

    GD87A Install Sheet (1 page) GD87A Install Sheet (1 page)

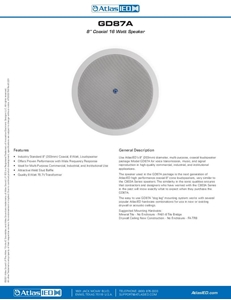

    GD87A Data Sheet (4 pages) GD87A Data Sheet (4 pages)
