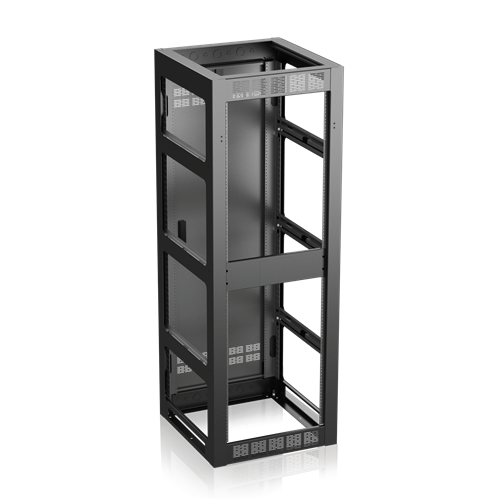

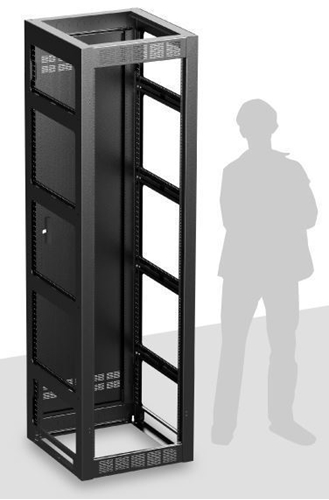

Gangable Rack 25.5 inch Deep, 44RU **Shown with Optional Side Panels & Front Door**

FMA44-25G
Availability: Call for Availability
Your Price:
$2,143.99
  • UL Listed
  • BAA
  • TAA
    DESCRIPTION

    The AtlasIED FMA44-25G (gangable) was designed with contractor input to meet storage and wire management needs for today and into the future. The unit features increased width for better wire management, and includes rear door. Construction for tops/bottoms/frames is 14-gauge steel. Hat sections provide rail slots and retainer holes for extra strength and two pairs of 12-gauge CRS adjustable mounting rails plated, drilled and tapped 10-32 with hash marks to indicate rack unit increments are included. Holes for optional surface doors are pre-drilled with threaded inserts factory installed to allow doors to be mounted after equipment is loaded. Hat sections are sized to facilitate standard 19" panels -handy for mounting "stick-on" modules and other hardware. Knock outs are provided on removable standard 2U panels (rear of cabinet top & bottom). These panels includes 3/8" KOs for BNC connectors (perfect for diversity wireless systems).


    A 10 RU open area space is provided on top sections to allow use AtlasIED fan panels or 5000 series top panels. Finish is scratch resistant textured black epoxy. Innovative swing out side panels (FMA44-25LRPV) are available for securing end racks in ganging applications. Plexiglass, perforated steel, and solid front doors are optional.


    Features
    • 14-Gauge Tops/Bottoms
    • 16-Gauge "Swing-Out" Side Panels
    • Hat Sections Accommodate Atlas "Channel Net" Installation of Lacing Bars, Power Strips or Bus Bars
    • Hat Sections are Completely Re-Designed with Rail Slot and Retainer "Hole" for Extra Strength
    • Hat Sections Sized to Facilitate Standard 19" Panels - Handy for Mounting "Stick-On" Modules and Other Hardware
    • Includes Two Pair of Plated 12-Gauge Mounting Rails Tapped 10-32 that Include RU Indicator Markings
    • Increased Vent Space on Extra Spare Top Sections - Use Atlas Fan Panels or 5000 Series Top Panels
    • Knock Outs on Removable Standard 2U Panels (Rear of Cabinet Top & Bottom Panel Includes 3/8" Knock Outs for BNC Connectors (Perfect for Diversity Wireless Systems)
    • Leg Levelers Included
    • Return Added for "Stop" When Flush Mount Doors are Utilized
    • Slots also Maintained in Hat Sections for Wire Management
    • Slots in Rack Rails for Cable Pass-Through and Front Door Hinge Access (SM Doors)
    • UL2416 Listed

    SPECIFICATIONS
    Rack Units 44
    Usable Depth 24 1/4" (61.57 cm)
    Shipping Weight 182.00 lbs (82.55 kgs)
    Safety Listed 1678
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    All Racks AE Specs Only All Racks AE Specs Only
    FMA44-25G FMA44-25G

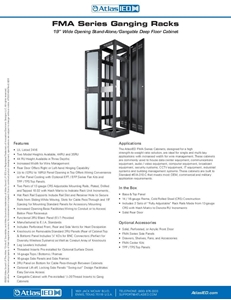

    FMA-G Series Rack Data Sheet (4 pages) FMA-G Series Rack Data Sheet (4 pages)
