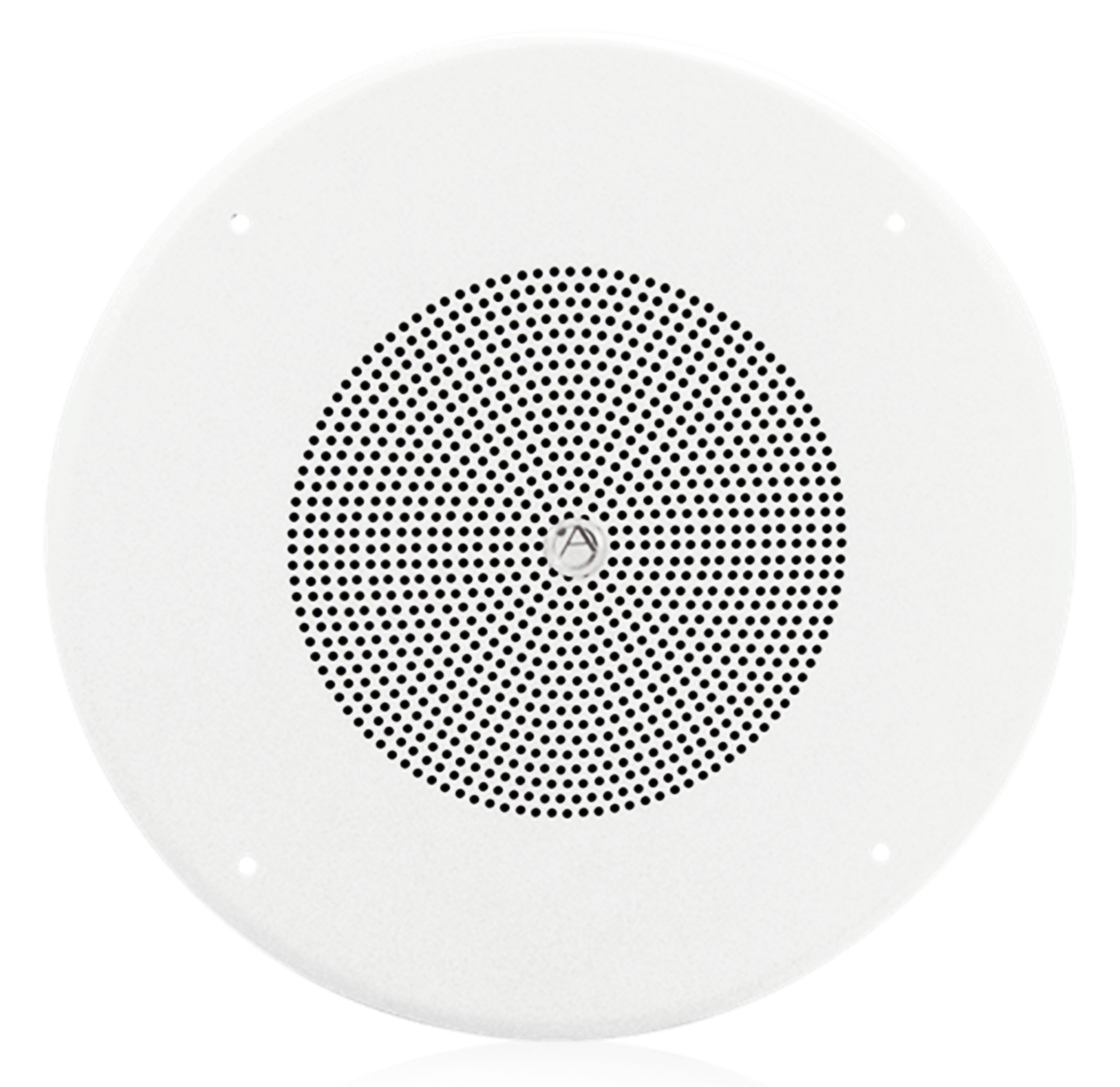

8" In-Ceiling Loudpeaker Assembly w 25V/70.7V Transformer Baffle and Hyfidrophobic™ Treatment

FD72W-HC

    Model FD72W-HC is a cost effective assembly that includes high-quality 8" loudspeaker, 25V/70.7V transformer and Hyfidrophobic® treated screw type grill.

    The FD72W-HC features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

    Loudspeaker / transformer is factory installed on a 62-8 style baffle.

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5 , 1, 2, & 4 Watts
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
