8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle

FD72W
Availability: In stock
Your Price:
$54.99
  • UL Listed
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

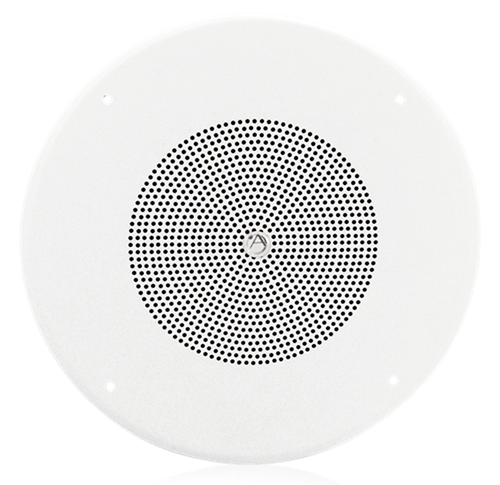

    Model FD72W is a cost effective assembly that include high-quality 8" speaker, 25V/70.7V transformer and screw type grill.

    The FD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

    Speaker / transformer is factory installed on a 62-8 style baffle.


    Features
    • Attractive White Finish
    • Easy to Order Speaker/Transformer/Grill Assembly
    • Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
    • Suited for Any Commercial Paging or BGM Application

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5 , 1, 2, & 4 Watts
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

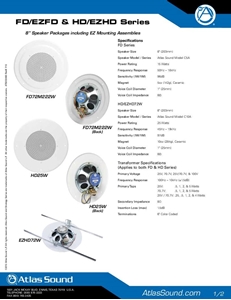

    FD/EZFD & HD/EZHD Series Datasheet (2 pages) FD/EZFD & HD/EZHD Series Datasheet (2 pages)
