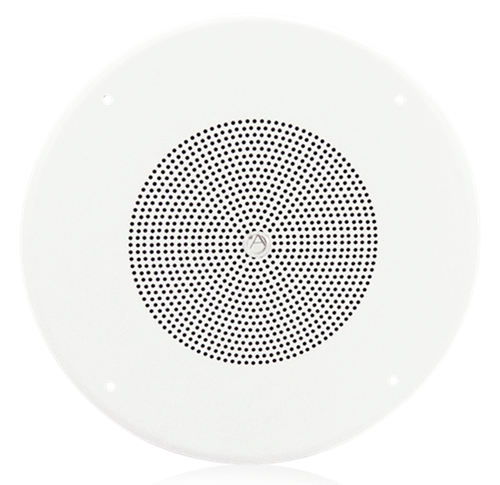

8" In-Ceiling Loudspeaker with 5-Watt 70V Transformer and 62-8 Baffle

FD70W
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CUL
  • 70V100VCAPABLE

    Model FD70W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.

    The FD70W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

    Loudspeaker / transformer is factory installed on a 62-8 style baffle.

    FEATURES
    Attractive White Finish
    Easy to Order Speaker/Transformer/Grill Assembly
    Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
    Suited for Any Commercial Paging or BGM Application
    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
    SUPPORT FILES
    SL1.1197.PDF (2 pages)

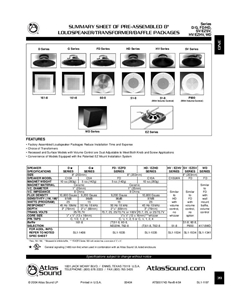

    Data Sheet
    FD_HD_Datasheet (2 pages)
    Data Sheet
    FD_HD_Datasheet (2 pages)
