8" In-Ceiling Speaker with 5-Watt 25V Transformer and 62-8 Baffle

Availability: In stock
Your Price:
  • UL Listed
  • CUL
  • 70V100VCAPABLE

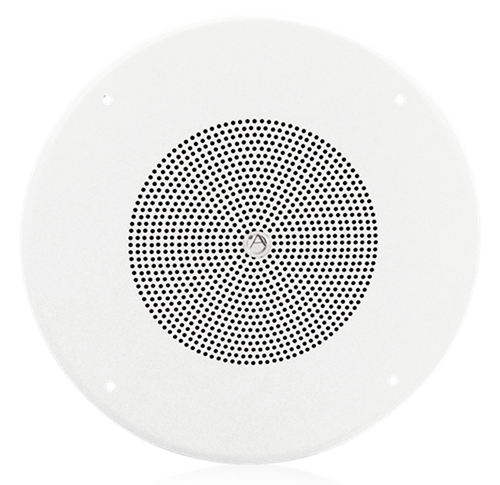

    Model FD25W is a cost effective assembly that include high-quality 8" speaker, 25V transformer and screw type grill. The FD25W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The FD25W includes a factory mounted 25V transformer.

    Speaker / transformer is factory installed on a 62-8 style baffle.

    • Attractive White Finish
    • Easy to Order Speaker/Transformer/Grill Assembly
    • Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
    • Suited for Any Commercial Paging or BGM Application

    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
    Warranty Period 60 months from date of purchase

    FD/EZFD & HD/EZHD Series Datasheet (2 pages) FD/EZFD & HD/EZHD Series Datasheet (2 pages)
