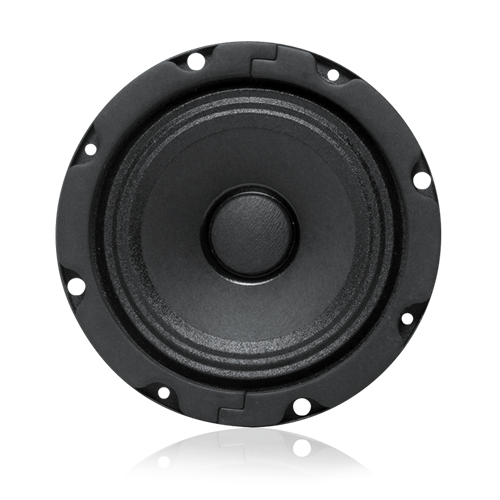

4" Standard In-Ceiling Speaker with 5-Watt 70V Transformer

FC104-T70
  • 70V100VCAPABLE
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
    DESCRIPTION

    The FC104-T70 is a full-range, 4" (127mm) speaker equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104-T70 also offers a wide dispersion angle which reduces the number of speakers necessary to achieve total coverage in low-ceiling distributed systems. The speaker offers a frequency response range of 150 Hz to 17 kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss. The FC104-T70 includes a factory installed 5 watt 70.7V transformer. This Industry standard, high quality transformer with audio grade laminations offers low insertion loss and full-range frequency response. The insertion loss does not exceed 1.5dB and the frequency response is +1.5dB from 100 Hz to 10 kHz. Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. A dual-purpose bracket securely mounts the transformer in a low profile position and enables torsion spring mounting found on many AtlasIED baffles.


    FEATURES
    • Efficient Wide-Range Frequency Response
    • Ideal for Public Address and Background Music Installations
    • Includes 4 Watt 70-Volt Transformer
    • Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
    • Mounts a Large Selection of Atlas Sound 4" Grilles
    • Offers Proven Performance with Wide-Angle Sound Dispersion

    SPECIFICATIONS
    Frequency Response 100Hz - 10kHz
    Sensitivity 94dB (at 1W/1m)
    Power Taps 70.7 V
    Speaker Type High Compliance
    Dispersion 135° (-6dB, 2 kHz Octave Band)
    Depth 2 1/4" (5.715 cm)
    Diameter 4" (10.16 cm)
    Shipping Weight 2.67 lbs (1.21 kgs)
    Safety Listed 1480
