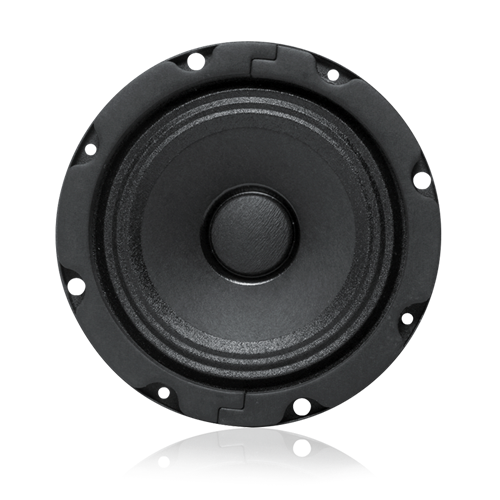

10-Watt 8Ω 4" In-Ceiling Speaker

FC104
Availability: In stock
Your price (USD): $23.99
  • 4OHM8OHMCAPABLE
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
    DESCRIPTION

    This compact, full-range, 4" (127mm) speaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104 also offers a wide dispersion angle which reduces the number of speakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150Hz - 17kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss.


    FEATURES
    • Available in 8Ω, 25V, 70.7V, 70.7/25V and 100V Versions
    • Efficient Wide-Range Frequency Response
    • Ideal for Public Address and Background Music Installations
    • Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
    • Mounts a Large Selection of Atlas Sound 4" Grilles
    • Offers Proven Performance with Wide-Angle Sound Dispersion

    SPECIFICATIONS
    Speaker Type High Compliance
    Sensitivity 94dB (at 1W/1m)
    Frequency Response 150Hz - 17kHz
    Power Taps 8 Ohms
    Dispersion 135° (-6dB, 2 kHz Octave Band)
    Depth 2 1/4" (5.715 cm)
    Diameter 4" (10.16 cm)
    Shipping Weight 2.00 lbs (0.91 kgs)

    SUPPORT FILES
    Data Sheet
    ATS002794 FC104 Series Data RevB
    Data Sheet
    FC104SeriesData
    CAD Drawing
    FC104
