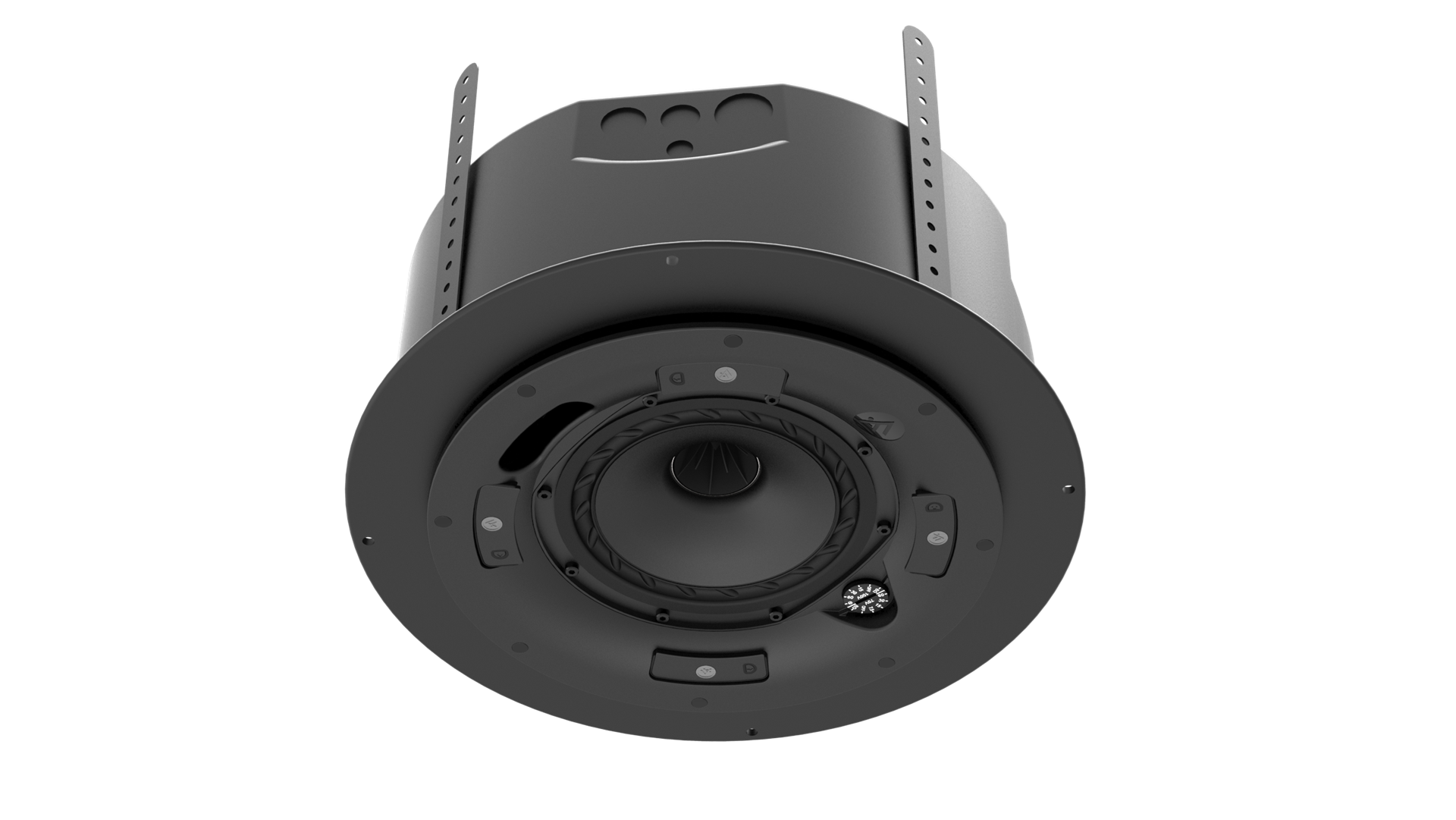

6" Premium Ceiling Speaker (Pre-Install)

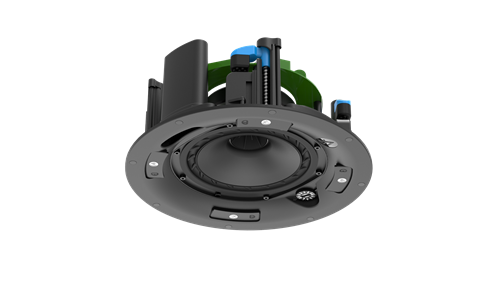

FC-6DRV 6" FC Series Speaker
6" Premium Ceiling Speaker Pre-Install Driver

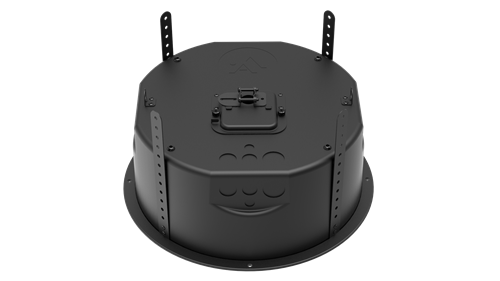

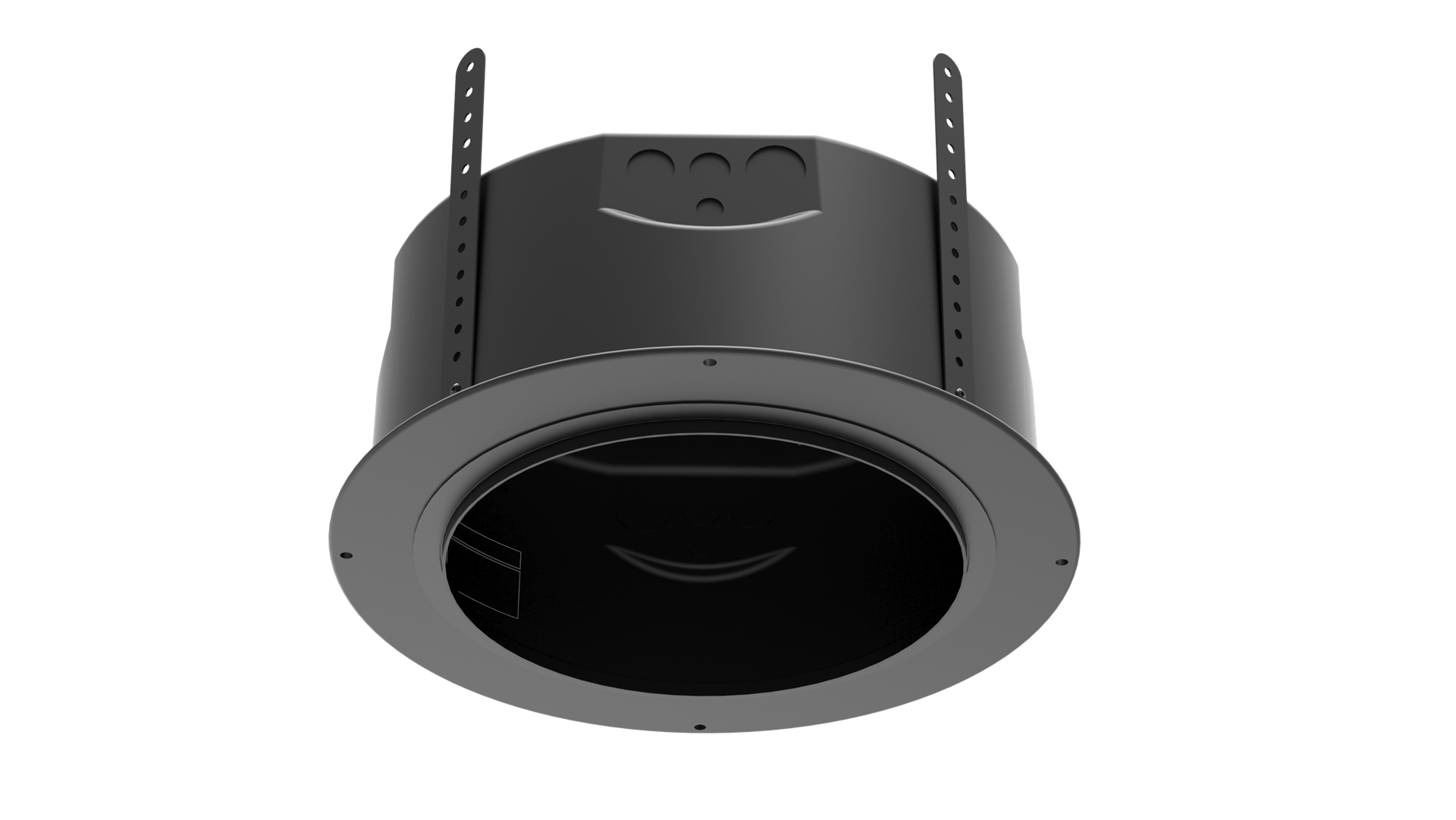

FC-6TPIC 6" Pre-install Backcan
6" Premium Ceiling Speaker Pre-Install Back Can

    The IsoFlare™ FC-6TPI is a wide bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

    Designed for use in applications requiring pre-installed backcans, where the first fix can be carried out during the electrical installation without the worry of damaging the loudspeaker parts during the building construction phase.

    The IsoFlare™ FC range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare™ to the premium commercial space in an integrated package.

    Unlike most ‘coax’ offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.

    Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

    The FC-6TPI is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

    Low frequency enhancement can be augmented with the FC-8ST ceiling subwoofer.

    Two IsoFlare 6” variants are available to satisfy most installation scenarios:

    • IsoFlare™ FC-6T (Blind Mount) - supplied with an integral back can, C-Ring, and Tile Bridge.
    • IsoFlare™ Pre-Install consists of 2 components:
      • FC-6DRV Pre-Install Driver- supplied without a back can.
      • FC-6TPIC Back Can (Pre-wired back can) – for separate backcan installation.

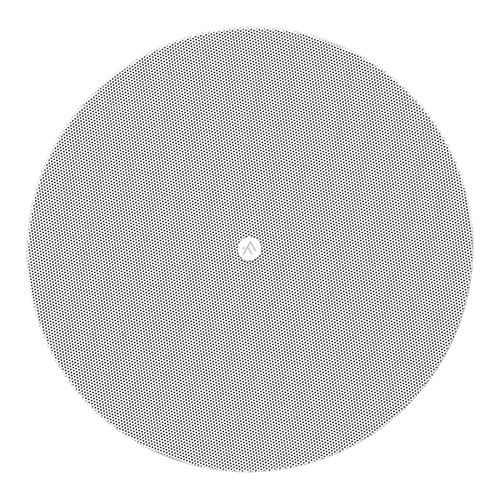

    • Bezel-less grille - magnetically secured - removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles.
    • Ferrofluid cooled titanium HF with neodymium magnet system.
    • Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange.
    • Fluted Surround Technology – Conventional driver surround profiles can reflect energy back down the cone causing coloration.
    • Optimized smooth transition baffle (no sharp edges which cause
    • Full bandwidth exceptionally low insertion loss 60W 70/100V transformer.
    • High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors).
    • Easy Access Tap Rotary Selector Switch.
    • Enhanced voicing presets available via AtlasIED Atmosphere platform.

    Type Two-Way, Full Range, Ceiling Loudspeaker (Pre-Install)
    Frequency Range (-10dB) 50Hz - 20kHz
    Frequency Response (+/- 3dB) 62Hz - 19kHz
    System Sensitivity (1W @ 1m) 91dB
    Noise 100°
    Directivity Index (dB) 5.6
    Average 80W
    Programme 160W
    Peak 320W
    Recommended Amplifier Power 160W @ 8 Ohms
    Nominal Impedance 8 Ohms
    Transformer Taps - via rotary selector switch 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation
    Average 110dB
    Peak 116dB
    Width 109dB
    Warranty Period 60 months from date of purchase

    • Boardrooms & Corporate Offices
    • Airports, Convention Centers, Hotels
    • Casinos
    • Houses of Worship
    • Retail Outlets, Shopping Malls
    • Museums
    • Lounges, Bars
    • Education Facilities
    • Cruise Ships
    • Courtrooms
    • Multizone Foreground Music & Paging Systems
