6" Premium Ceiling Speaker (Blind Mount)

FC-6T
    DESCRIPTION

    The IsoFlare™ FC-6T is a wide bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

    The IsoFlare™ FC range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare™ to the premium commercial space in an integrated package.

    Unlike most ‘coax’ offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.

    Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

    The FC-6T is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

    Low frequency enhancement can be augmented with the FC-8ST ceiling subwoofer.

    Two IsoFlare 6” variants are available to satisfy most installation scenarios:

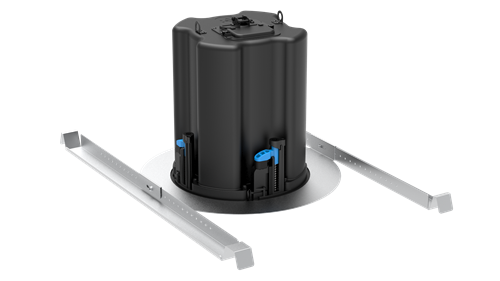

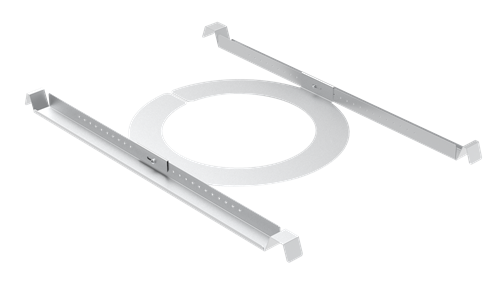

    • IsoFlare FC-6T (Blind Mount) - supplied with an integral back can, C-Ring, and Tile Bridge.
    • IsoFlare Pre-Install consists of 2 components:
      • FC-6DRV Pre-Install Driver- supplied without a back can.
      • FC-6TPIC Pre-wired Back Can – for separate backcan installation.

    Features
    • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation.

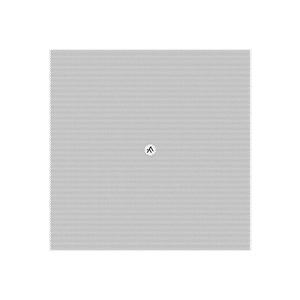

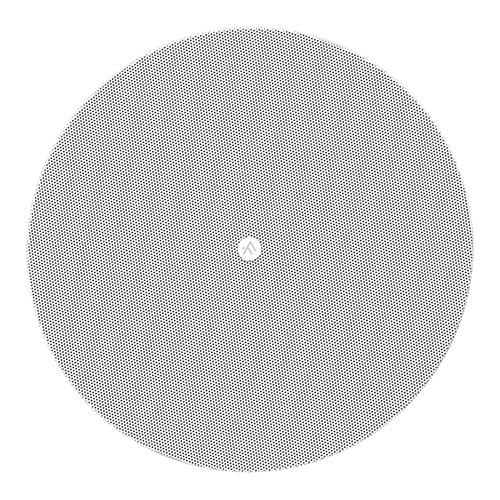

    • Bezel-less grille - magnetically secured - removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles.

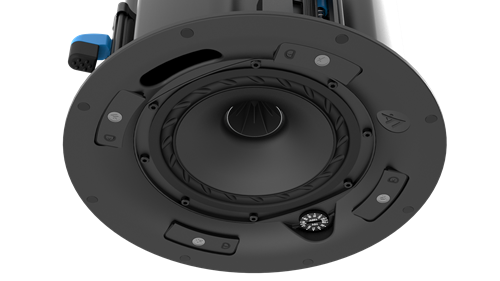

    • Ferrofluid cooled titanium HF with neodymium magnet system.
    • Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange.
    • Fluted Surround Technology – Conventional driver surround profiles can reflect energy back down the cone causing coloration.
    • Optimized smooth transition baffle (no sharp edges which cause
      diffraction).
    • Full bandwidth exceptionally low insertion loss 60W 70/100V transformer.
    • High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors).

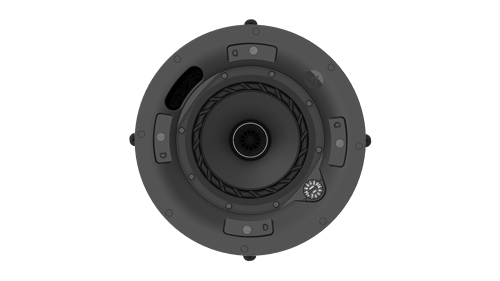

    • Easy Access Tap Rotary Selector Switch.
    • Enhanced voicing presets available via AtlasIED Atmosphere platform.

    SPECIFICATIONS
    Type Two-Way, Full Range, Ceiling Loudspeaker (Blind Mount)
    Frequency Range (-10dB) 50Hz - 20kHz
    Frequency Response (+/- 3dB) 62Hz - 19kHz
    System Sensitivity (1W @ 1m) 91dB
    Nominal Coverage Angle (-6dB) 100°
    Directivity Index (dB) 5.6
    POWER HANDLING
    Average 80W
    Programme 160W
    Peak 320W
    Recommended Amplifier Power 160W @ 8 Ohms
    Nominal Impedance 8 Ohms
    Transformer Taps - via rotary selector switch 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation
    RATED MAXIMUM SPL
    Average 110dB
    Peak 116dB
    With Max. Transformer Tap - Average 109dB
    Warranty Period 60 months from date of purchase

    Applications
    • Boardrooms & Corporate Offices
    • Airports, Convention Centers, Hotels
    • Casinos
    • Houses of Worship
    • Retail Outlets, Shopping Malls
    • Museums
    • Lounges, Bars
    • Education Facilities
    • Cruise Ships
    • Courtrooms
    • Multizone Foreground Music & Paging Systems
