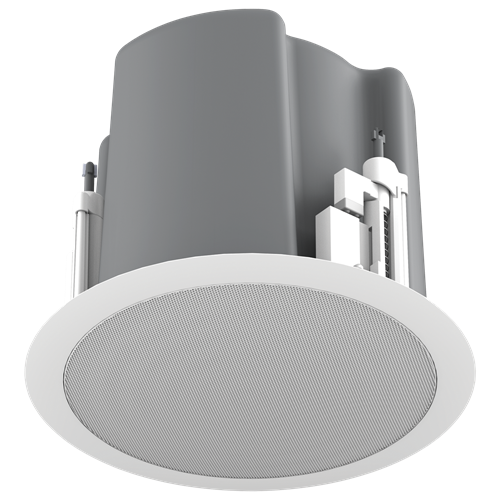

6.5" Coaxial In-Ceiling Loudspeaker with 32-Watt 70V/100V Transformer, Ported Enclosure, and Safety First Mounting System

FAP63T-W
  • UUMW Rated
  • UL1480/2043
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation
  • IP 21 Rated

    The AtlasIED FAP63T Strategy III is a 6.5" coaxial loudspeaker with next generation install technology. It is packed with new performance innovations at an affordable price point for every style of installation applications. If you require an in-ceiling loudspeaker with excellent speech intelligibility, crisp music reproduction, quick installation, and wide audience coverage, look no further - this is the Right Choice. We achieved these new standards by building upon the current Strategy Series excellent reputation and by extensive market research to make it even better. The results are outstanding and will have you choosing them for all your projects going forward.

    Retail stores, restaurants, recreational facilities, and even hotels, convention centers, and casinos have all changed their thinking on how an in-ceiling loudspeaker should perform. For many years, good enough was a loudspeaker that just played dull and lifeless sound. In today's world, good enough is no longer accepted because building owners want to increase their customer's experience by providing them the best of everything - including superb sound. The improved waveguide design provides wider coverage than previous models. The benefit is cost savings due to fewer loudspeakers required, while still maintaining uniform sound throughout.  To enhance our low-frequency response and provide deeper bass definition, we optimized the low frequency tuning port. Additionally, the FAP63T is safety listed to both UL1480 and UL2043.

    In-ceiling loudspeakers are subjected to various climate and humidity environments.  Competitive offerings use steel screws that can easily rust and fail due to humidity exposure. The FAP63T provides corrosion-free, no-worry operation, since it has no metal screws holding the doglegs in position.

    A new innovation is our Safety First Mounting System (SFMS).  This technology prevents mounting tab damage during installation that other offerings suffer.  The damage is caused by over torqueing during the installation process.  This excessive torque can damage the mounting tabs that over time can increase the chance of mounting tab breakage and the loudspeaker falling from the ceiling. The SFMS is the result of over 100 tested prototypes until the final design was approved.  This patent pending technology uses t-handles that are integrated into the front of the speaker baffle to tighten the mounting tabs in materials as thin as sheet metal and up to 3/4".

    Another important benefit is faster installation times. The SFMS also decreases installation time by up to 60%.  Its mounting design is simple install steps without the need for any tools.  A front mounted 70V tap selector allows installers to quickly adjust and set the 70V power taps. A removable 4-pole euro-style connector allows for easy pre-wiring and daisy chaining of additional speakers and subwoofers.  The result is fewer labor costs and better profits.

    FEATURES
    SFMS - Safety First Mounting System Patented Design Allows for Quick, Easy Installation
    Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss
    Increased Dispersion with Improved Waveguide
    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for Direct Coupled Operation
    4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining of Additional Speakers
    "Press Fit" Grilles Blend Better into Contemporary Architecture
    Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit
    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 90dB (1W/1m)
    Power Taps 4, 8, 16, 32 Watts & 8Ω
    8Ω RMS Power 75-Watts Continuous / 150-Watts Program
    Frequency Response 80Hz - 20kHz
    Dispersion 100°
    Certified to Safety Listing UL1480 & UL2043
    SUPPORT FILES

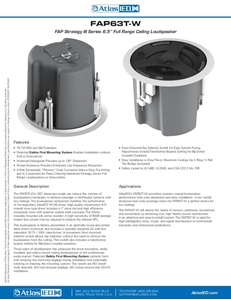

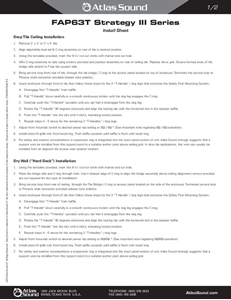

    Installation Sheet FAP63T-W Data Sheet (7 pages) View | Download
    EASE File FAP63T-W EASE File Download
    CAD Drawing FAP63T-W CAD File Download
    Revit Drawing FAP63T-W Revit Drawing Download
    Loudspeaker Placement Tool

    The AtlasIED Loudspeaker Placement Tool is designed to make it easy to select the proper positioning of loudspeakers in a given room. Choose your AtlasIED loudspeaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
    Your browser does not support the HTML5 canvas tag.
    Click Here to Download Offline Excel Version
