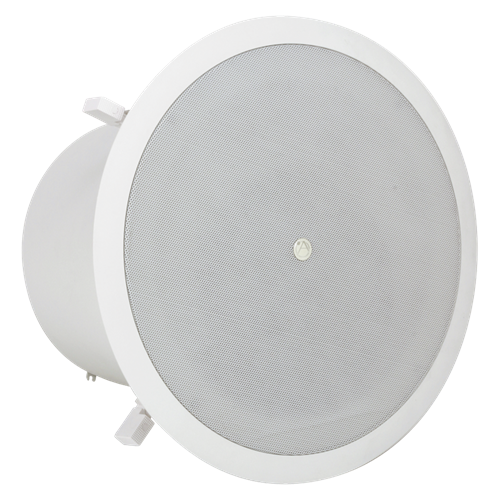

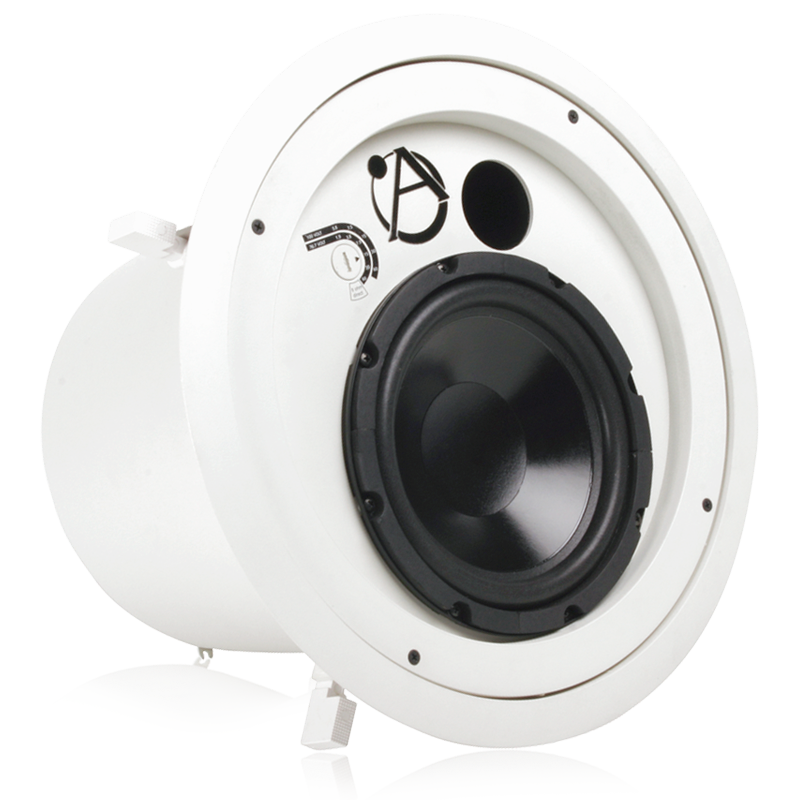

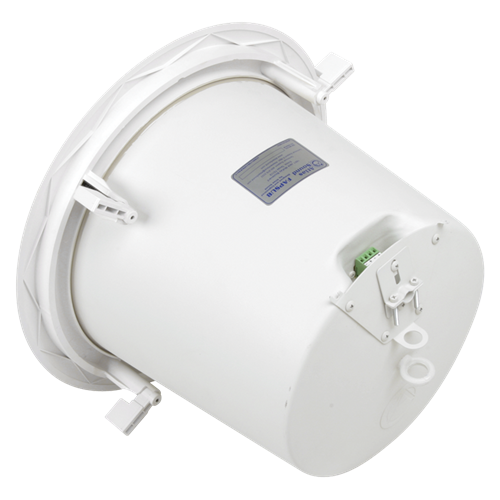

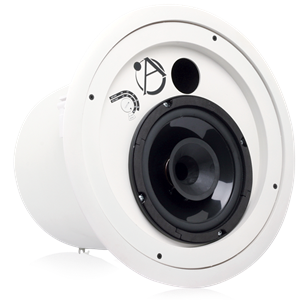

8" Tuned Ported In-Ceiling Subwoofer with 60-Watt 70V/100V Transformer

FAPSUB-1
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation

    The FAPSUB-1 adds impressive low frequency response to any full range distributed system. The FAPSUB-1 consists of a highly efficient 8", 8 ohm subwoofer designed and built by AtlasIED to work optimality in the FAPSUB-1 enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer and provides bass response down to 45Hz (±10dB).

    A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range loudspeakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the loudspeaker from the ceiling. This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.

    FEATURES
    Attractive Grille and Bezel Matches Aesthetics of Other Atlas Sound FAP Series
    Detachable, Phoenix Style, Locking, Four-Pole Connector Provides for Easy Daisy Chain Wiring

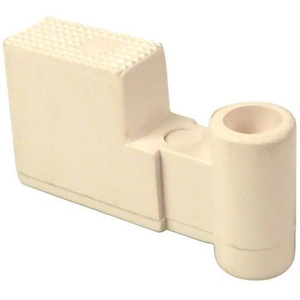

    Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    High-Efficiency, Passive Crossover Network Eliminates the Need for Dedicated Amplifier and/or Active Crossover
    Low Crossover Point Greatly Reduces Localization (Ability of Listener to Identify the Subwoofer Location)
    Uniquely Designed, "Easy Access" Input Panel Design Allows for "Thru" Conduit Runs Using Flexible or Rigid Conduit
    SPECIFICATIONS
    Speaker Type In Ceiling Sub
    Sensitivity 89dB Average
    Power Taps 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω
    Frequency Response 45Hz - 120Hz
    Dispersion Omni
    Diameter 15 3/4" (40.005 cm)
    Certified to Safety Listing UL 1480
    SUPPORT FILES
    Data Sheet ATS002219F FAPSUB Data Sheet (4 pages) View | Download
    CAD Drawing FAPSUB Download
    Revit Drawing FAPSUB-1 Revit Drawing Download
