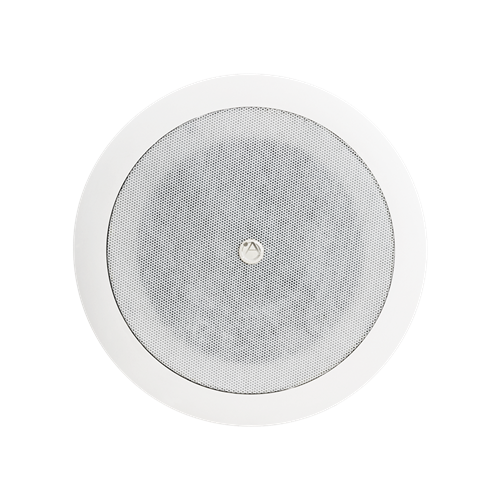

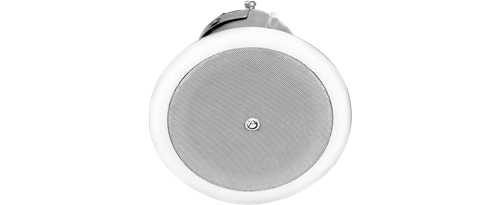

EN54-24 certified 4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure - White

  • EN54-24 Certified
  • CE
  • 70V / 100V Operation
  • Non-Powered
  • Paintable
  • 8Ω Operation

    The EN54-24 certified FAP42TEN's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.

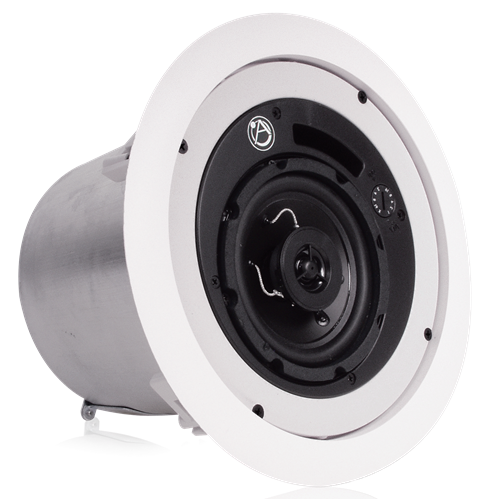

    The loudspeaker component matches the performance of the legendary AtlasIED Strategy FA Series. High quality construction 4" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity level means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled in an optimally tuned & ported deep drawn enclosure and includes a specially designed 16 Watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation.

    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
    • Press-Fit Grille Blends Perfectly into Contemporary Architecture
    • EN54-24 Certified
    • ISO 7240-24 Certified
    • Ingress Protection (EN54-24): IP21C

    Speaker Type Coaxial
    Sensitivity (1W/1m): 88dB
    Sensitivity (EN54-24) (1W/4m): 72dB
    Power Taps 1, 2, 4, 8, 16 Watts & 8Ω
    Frequency Response 83Hz - 20kHz (±5dB)
    Dispersion 130°
    Depth 8.86" (225mm)
    Diameter 10.43" (265mm)
    Cut Out Diameter 9" (229 mm)
    Shipping Weight 12 lbs (5.44 kgs)
    Warranty Period 60 months from date of purchase

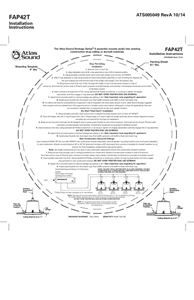

    FAP42T Installation Sheet (1 page) FAP42T Installation Sheet (1 page)

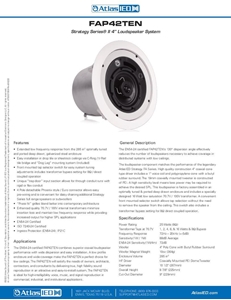

    FAP42TEN Datasheet (5 pages) FAP42TEN Datasheet (5 pages)
