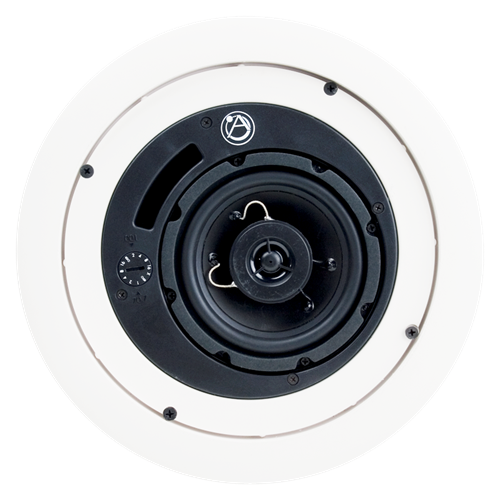

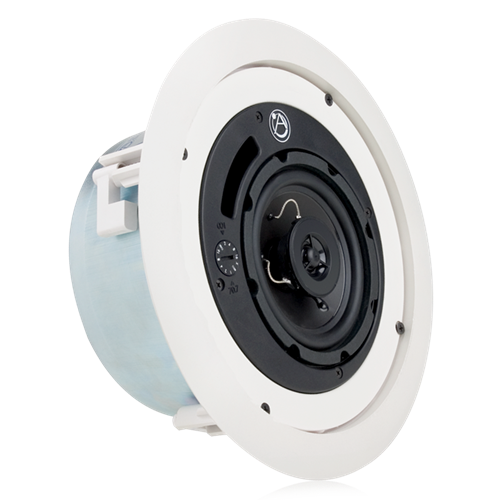

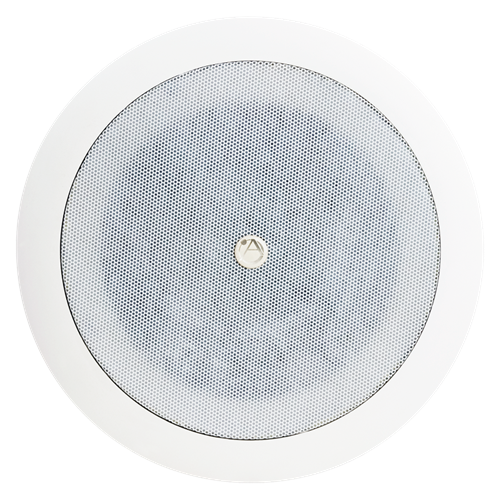

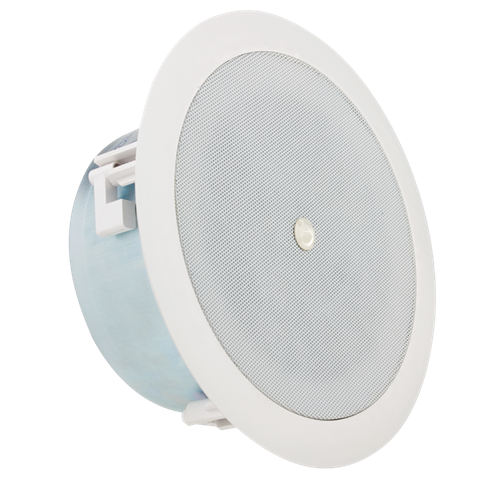

EN54-24 Certified 4" Shallow Mount Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer

FAP42TCEN
  • EN54-24 Certified
  • CE
  • 70V / 100V Operation
  • HYFIDROPHOBIC_OPTIONAL
  • Non-Powered
  • Paintable
  • 8Ω Operation
    DESCRIPTION

    The EN54-24 certified FAP42TCEN's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary AtlasIED Strategy FA Series. High quality construction 4" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. This loudspeaker is factory assembled in a deep drawn enclosure and includes a specially designed 16 watt low saturation, 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω operation.


    Features
    • "Press Fit" Grilles Blend Better into Contemporary Architecture
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Low Depth (4") Speaker System for Limited Space Applications
    • EN54-24 Certified
    • ISO 7240-24 Certified
    • Ingress Protection (EN54-24): IP21C

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity (1W/1m): 88dB
    Sensitivity (EN54-24) (1W/4m): 70dB
    Power Taps 1, 2, 4, 8, 16 Watts & 8Ω
    Frequency Response 83Hz - 20kHz (±5dB)
    Dispersion 130°
    Depth 4.33" (110mm)
    Diameter 10.43" (265mm)
    Cut Out Diameter 9" (229 mm)
    Shipping Weight 10.68 lbs (4.84 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

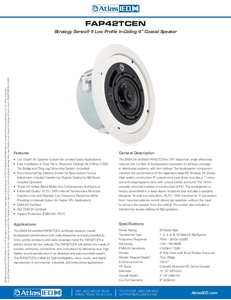

    FAP42TCEN Datasheet (5 pages) FAP42TCEN Datasheet (5 pages)

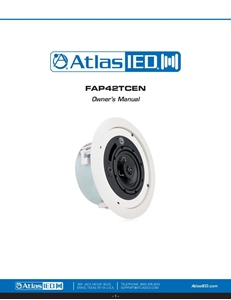

    FAP42TCEN Manual (13 pages) FAP42TCEN Manual (13 pages)
    Declaration of Performance (DoP)_3007-EN  ISO 54-24-CE-Declartion_FAP_CNBOP (2 pages) Declaration of Performance (DoP)_3007-EN ISO 54-24-CE-Declartion_FAP_CNBOP (2 pages)
    FAP42TC CAD Drawing FAP42TC CAD Drawing
    FAP42TC Revit Drawing FAP42TC Revit Drawing

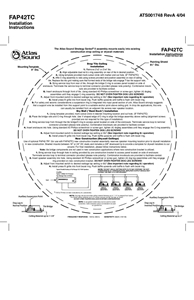

    FAP42TC Installation Sheet (1 page) FAP42TC Installation Sheet (1 page)
