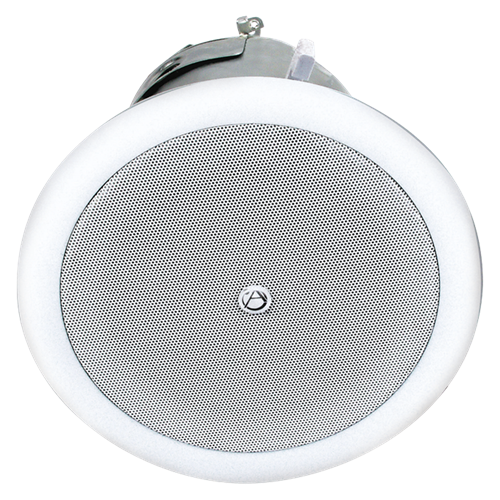

4" Coaxial In-Ceiling Loudspeaker with 16-Watt 70/100V Transformer, Ported Enclosure, and UL2043 Certification

FAP42T-UL2043
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation

    The FAP42T-UL2043 from AtlasIED meets requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial loudspeaker performance with wide dispersion and easy installation.

    A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.

    The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

    The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

    FEATURES
    4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure

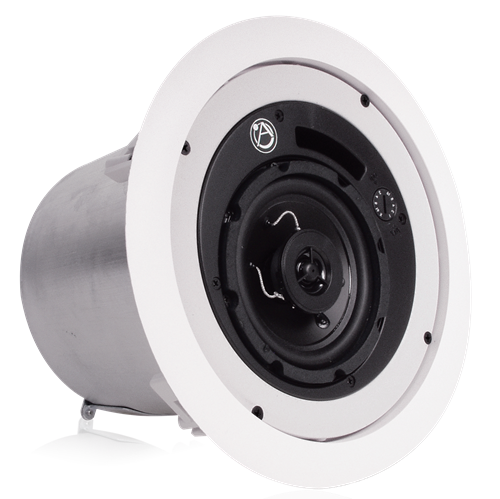

    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required

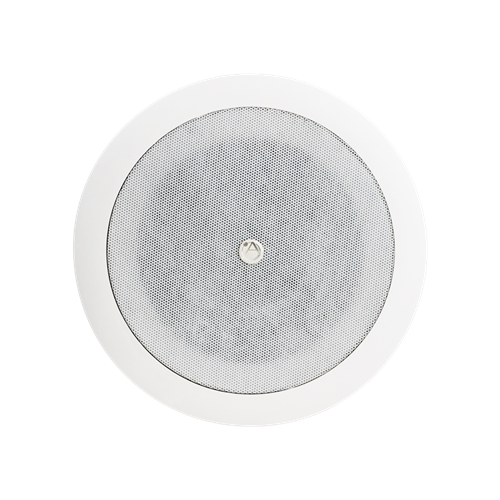

    Press-Fit Grille Blends Perfectly into Contemporary Architecture
    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average
    Power Taps 1, 2, 4, 8, 16 Watts & 8Ω
    Dispersion 130°
    Depth 8 7/8" (22.5425 cm)
    Shipping Weight 12.00 lbs (5.44 kgs)
    Certified to Safety Listing UL 1480 & UL 2043
    SUPPORT FILES

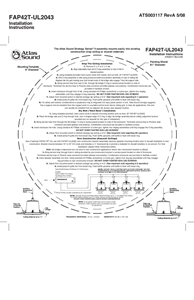

    Installation Sheet
    INPPFAP42T.PDF (1 page)

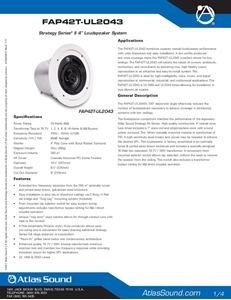

    Data Sheet
    ATS003677C FAP42T-UL2043 Data Sheet (4 pages)
    Revit Drawing
    FAP42T-UL2043 Revit Drawing
