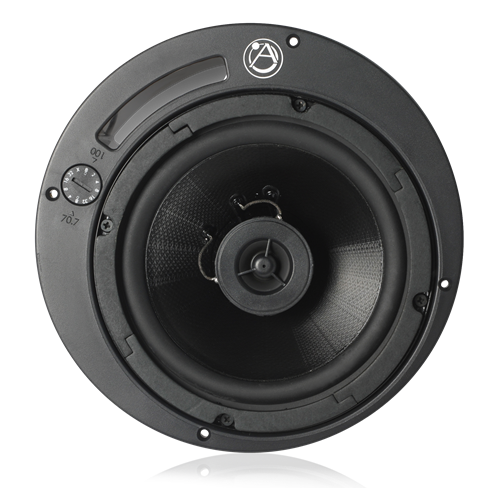

6" In-Ceiling Coaxial Speaker Motorboard Assembly with 32-Watt 70.7V/100V Transformer

FA62T-8MB
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE

    Model FA62T-8MB is the entire 6" loudspeaker/ transformer/ selector switch/ front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" loudspeaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA loudspeaker (FA138Txx).

    FEATURES
    6" Speaker Installs into 8" Strategy Enclosure
    Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
    Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    Tuned Port Maximizes Low Frequency Response from FA97-8 & FA95-8 Enclosure
    UL1480 for General Signaling Listed file UEAY.S1824
    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average
    Frequency Response 63Hz - 20kHz
    Power Taps 2, 4, 8, 16, 32, 8 Ohm direct
    Dispersion 110°
    Depth 5 1/2" (13.97 cm)
    Diameter 8 1/2" (21.59 cm)
    Shipping Weight 6.00 lbs (2.72 kgs)
    Safety Listed 1480
    SUPPORT FILES
    Data Sheet

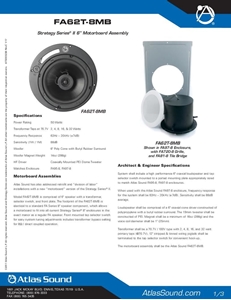

    ATS003238C FA62T-8MB Data Sheet (3 pages)
    INPPFA62T_8MB.PDF (1 page)
    Installation Sheet
    FA62T-8MB_Install_Sheet (1 page)
    CAD Drawing
    FAP62T-8MB
