Fire Rated 6" Strategy Coaxial Speaker with 8-Watt 70V Transformer, Enclosure, and Baffle

FA136T87FRK
Availability: In stock
Your price (USD): $304.99/each
Must purchase in multiples of 6
  • UL Listed
  • BAA
  • 70V100VCAPABLE
  • TAA
    DESCRIPTION

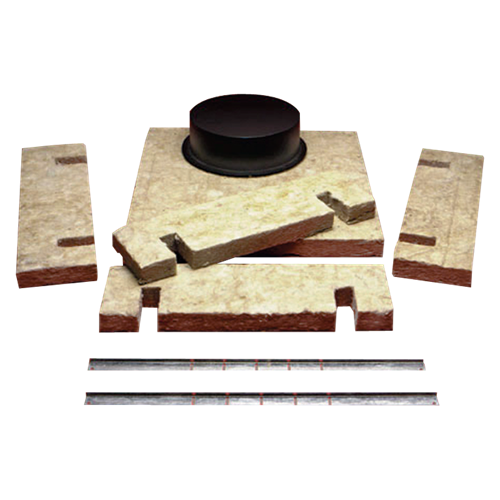

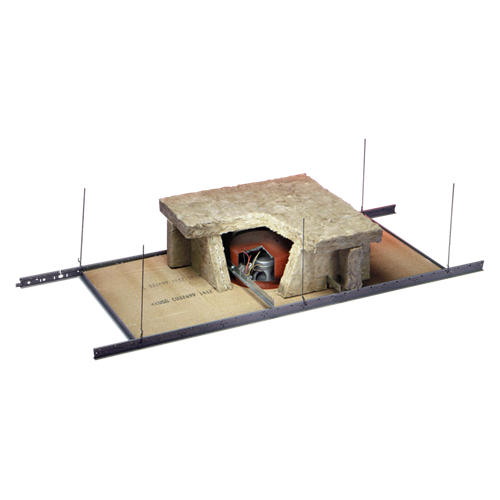

    FA136T87FRK is UL classified for fire-resistance in the United States and Canada. The FA136T87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). FA136T87FRK assembly includes a enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer approved for use with the FA136T87FRK are FR versions of the industry standard AtlasIED Strategy Series FA136, FA138 models and the C803A, C10A, and FC104 speakers.


    FEATURES
    • UL Certified, Safety Listed to UL263

    SPECIFICATIONS
    Height 10 3/4" (27.305 cm)
    Width 24" (60.96 cm)
    Included Baffle FA720-6FR
    Included Speaker FA97-6FR
    Included Enclosure FA136T87FR
    Safety Listed ANSI / UL 263 (ASTM E119, NFPA 251)

    SUPPORT FILES
    Data Sheet
    ATS004121 FR Series Datasheet RevA
