6" Strategy Series Speaker

FA116T72
  • UL Listed
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

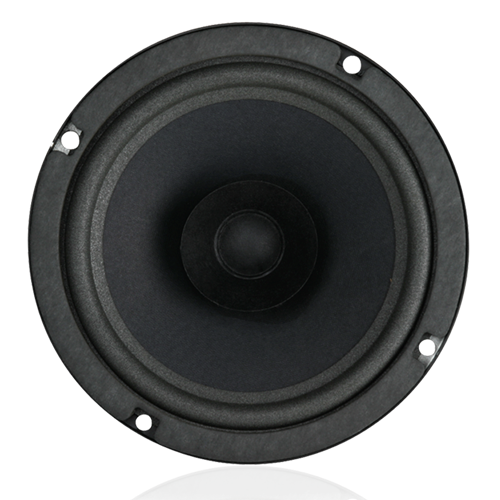

    Strategy Series Model FA116 is an efficient 6" speaker rated at 25 watts with wide frequency response and broad dispersion.

    Assembly includes a 6" (152mm) driver with a formed paper cone, weather-protective half-rolled polyether foam surround, whizzer and 10 oz. ceramic magnet.

    The speaker's full-range capability is optimized when installed within the FA97-6 Series high performance (.17ft3) enclosures with acoustic batting. Economy Series FA95-6 are shorter (.14ft3) versions without acoustic batting. All models provide for frontloading of the speaker and install quickly and easily into the ceiling via screwdriver-adjustable clamps or conventional screws.

    Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation to Strategy Series enclosures.


    Features
    • Choice of System Components Including Transformers, Acoustic Enclosures, Hardware-Free Grilles, Tile Bridge, Plaster Ring, Trim Ring, Adapters and Accessories
    • Delivers Full-Range with Wide Dispersion
    • Efficient, economical Alternative to other Loudspeaker Systems
    • Front Loads into Acoustically Matched Enclosures
    • Patented, Easy-to-Install Loudspeaker Mounting System

    SPECIFICATIONS
    Depth 4 1/2" (11.43 cm)
    Sensitivity 89.6dB Average, 94dB Peak
    Diameter 6 1/2" (16.51 cm)
    Shipping Weight 3.15 lbs (1.43 kgs)
    Frequency Response 90Hz-20kHz (±1.5dB)
    Power Taps 70.7V/25V
    Speaker Type Full Range
    Dispersion 130°
    Safety Listed 1480
