Complete Business Music & Paging System for Ceiling Tile Applications - with Level & Source Wall Controller and Self Diagnostics

EZSYS-BGM-CPHD
  • Electrical Safety Listed
  • 25V/70V Operation
  • 4OHM8OHMCAPABLE
  • Fault Reporting
  • Remote Level
  • Rack Kit Sold Separately

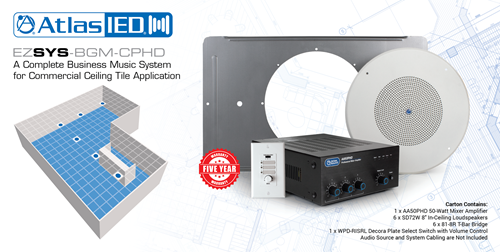

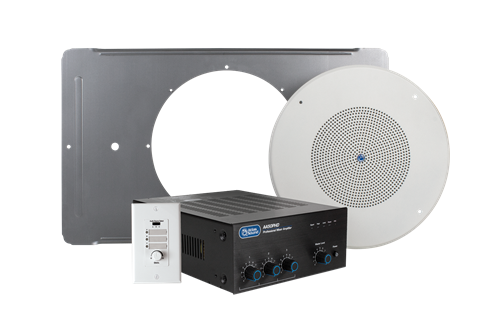

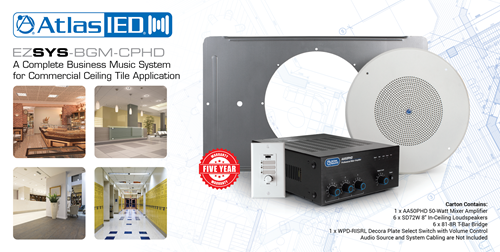

    The EZSYS-BGM-CPHD Package Includes
    System Package

    The EZSYS-BGM-CPHD package is an entire business music and paging system. It includes a patented self-diagnostic technology called "Push Here Diagnostics". The system package includes the proper amplification, system control, and loudspeakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment including cable and tool requirements

    5 Year Warranty

    An extended warranty is provided for all products included in each EZSYS package for years of worry-free operation.

    Learn about the technologies inside the AAPHD Mixer Amps

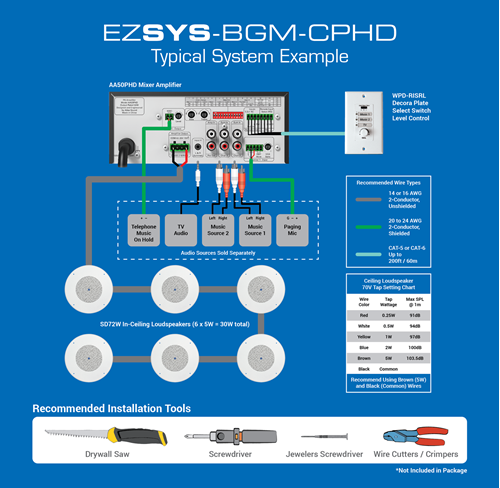

    System Diagram
    System Diagram
    SUPPORT FILES
    Owners Manual
    AA50PHD Owners Manual (20 pages)
    Data Sheet
    AA50PHD Data Sheet (3 pages)
    Application Example
    AA50PHD Self Diagnostics (2 pages)
    Data Sheet
    SD72W Data Sheet (3 pages)
    Installation Sheet
    SD72W Install Sheet (1 page)
    Data Sheet
    81-8R Data Sheet (1 page)
    Application Example
    WPD-RISRL Wall Controller (2 pages)
    Loudspeaker Placement Tool

    The AtlasIED Loudspeaker Placement Tool is designed to make it easy to select the proper positioning of loudspeakers in a given room. Choose your AtlasIED loudspeaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.
