8" Dual Cone In-Ceiling Speaker with 25V/70V 5-Watt Transformer and 62-8 Baffle

SD72W
Availability: In stock
MSRP (USD): $46.99
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • 25V/70V Operation
    DESCRIPTION

    The speaker used in the SD72W is the next generation of Atlas high performance cone speakers, very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72W.

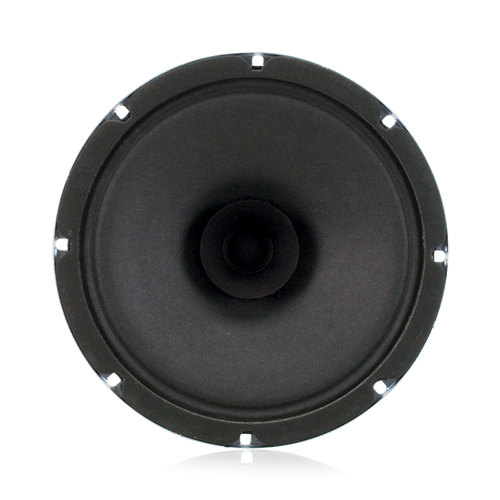

    Model SD72W is a dual cone, 25 watt 8" (205mm) speaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

    Model SD72W operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°.

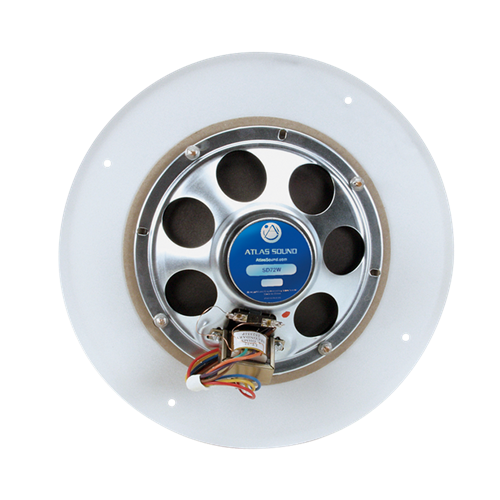

    The SD72W includes a factory installed CRS baffle with concealed speaker mounting studs and includes screw mount hardware. The SD72W baffle features standard mounting holes to accommodate the majority of AtlasIED 8" tile bridges, mounting rings and enclosures. When specifying mounting hardware be advised that the dimensions of the SD72W baffle match the AtlasIED Model 62-8. The baffle finish is white powder coat epoxy.



    Also Available: SD72W-KIT

    Includes SD72W, CS95-8 Enclosure, and 81-8R Tile Bridge.
    SD72W-KIT MUST BE ORDERED IN MULTIPLES OF 12.



    FEATURES
    • 10oz Dual Cone Speaker Provides Familiar Response & Performance
    • Safety Listed to UL 1480 & UL 2043
    • Attractive CRS White Powder Coat Baffle
    • Individually Packaged for Stocking & Ordering Convenience
    • Quality 5 Watt-Dual Voltage Transformer

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Average
    Frequency Response 55Hz - 8kHz
    Power Taps .25, .5, 1, 2, & 5 Watts
    Dispersion 105° (2kHz Octave Band, -6dB Points)
    Diameter 8 1/8" (20.6375 cm)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    SD72, SD72W, SD72WV Install Sheet (1 page)
    SD72W Data Sheet (3 pages)
    SD72W CAD Drawing
    SD72 EASE DATA
    SD72W Revit Drawing
    Speaker Placement Tool
