Complete Business Music & Paging System for Surface Mount Applications - with Wall Level Controller

EZSYS-BGM-S
  • Universal Power Supply
  • Electrical Safety Listed
  • 70V / 100V Operation
  • 4OHM8OHMCAPABLE
  • 90°H x 90°V Coverage
  • IP33
  • Rack Kit Sold Separately
  • Optional Ball Mount Sold Separately

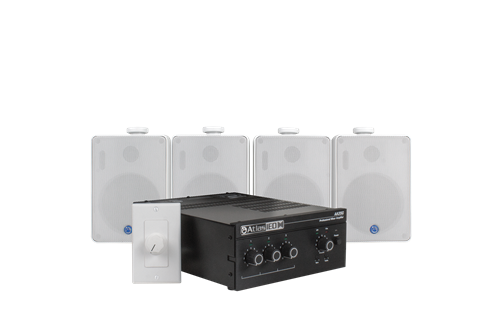

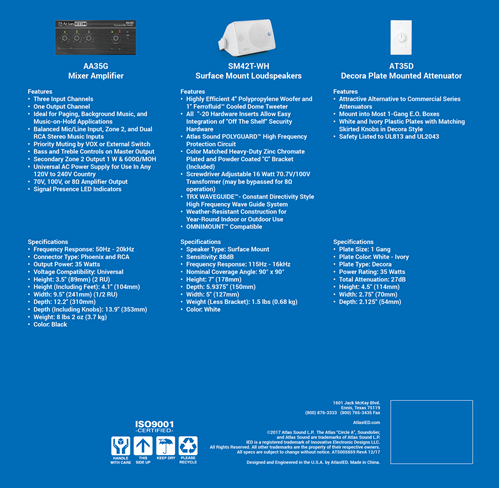

    The EZSYS-BGM-S Package Includes
    System Package

    The EZSYS-BGM-S package is an entire business music and paging system. It is designed for surface-mount installations and includes the proper amplification, system control, and loudspeakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment including cable and tool requirements

    5 Year Warranty

    An extended warranty is provided for all products included in each EZSYS package for years of worry-free operation.

    System Diagram

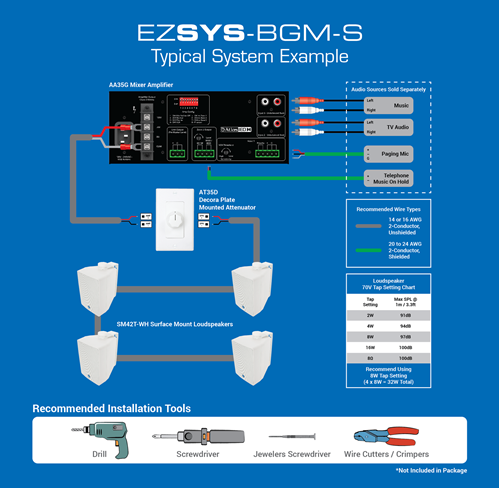

    System Diagram
    SUPPORT FILES
    Owners Manual
    AA35G Owners Manual (16 pages)
    Data Sheet
    SD72W Data Sheet (3 pages)
    Installation Sheet
    SM42T-WH Owners Manual (12 pages)
    Data Sheet

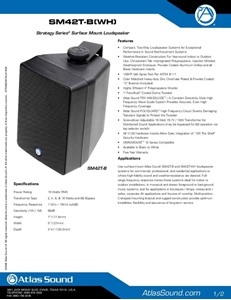

    SM42T-WH Data Sheet (2 pages)
