8" In-Ceiling Loudspeaker with 4-Watt 25V/70V Transformer, 51-8 Baffle, and Drop Tile Support Rails

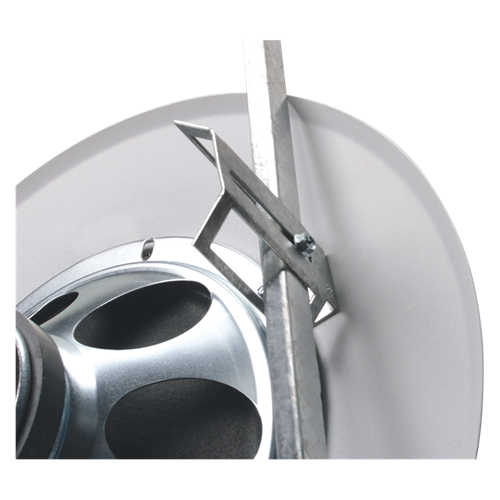

    The EZ Mount Support System transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.

    The support rails are heavy-gauge CRS and finished in a galvanized coating.

    Equipped with 25/70.7V Transformer
    Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
    51-8 Style Grille with White Finish
    Frequency Response 100Hz - 10kHz
    Sensitivity 97dB Peak, 94dB Average
    Power Taps .25, .5, 1, 2, & 4 Watts
    Speaker Type Treated Paper
    Dispersion 105°
    Depth 2 7/8" (7.30 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 5.17 lbs (2.35 kgs)
