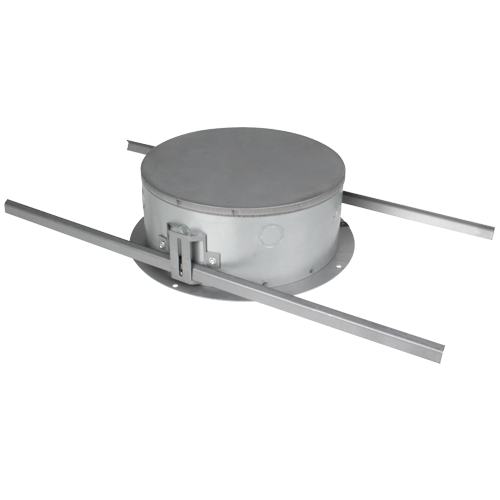

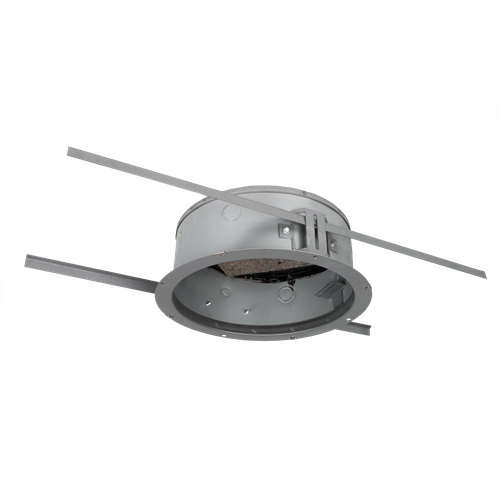

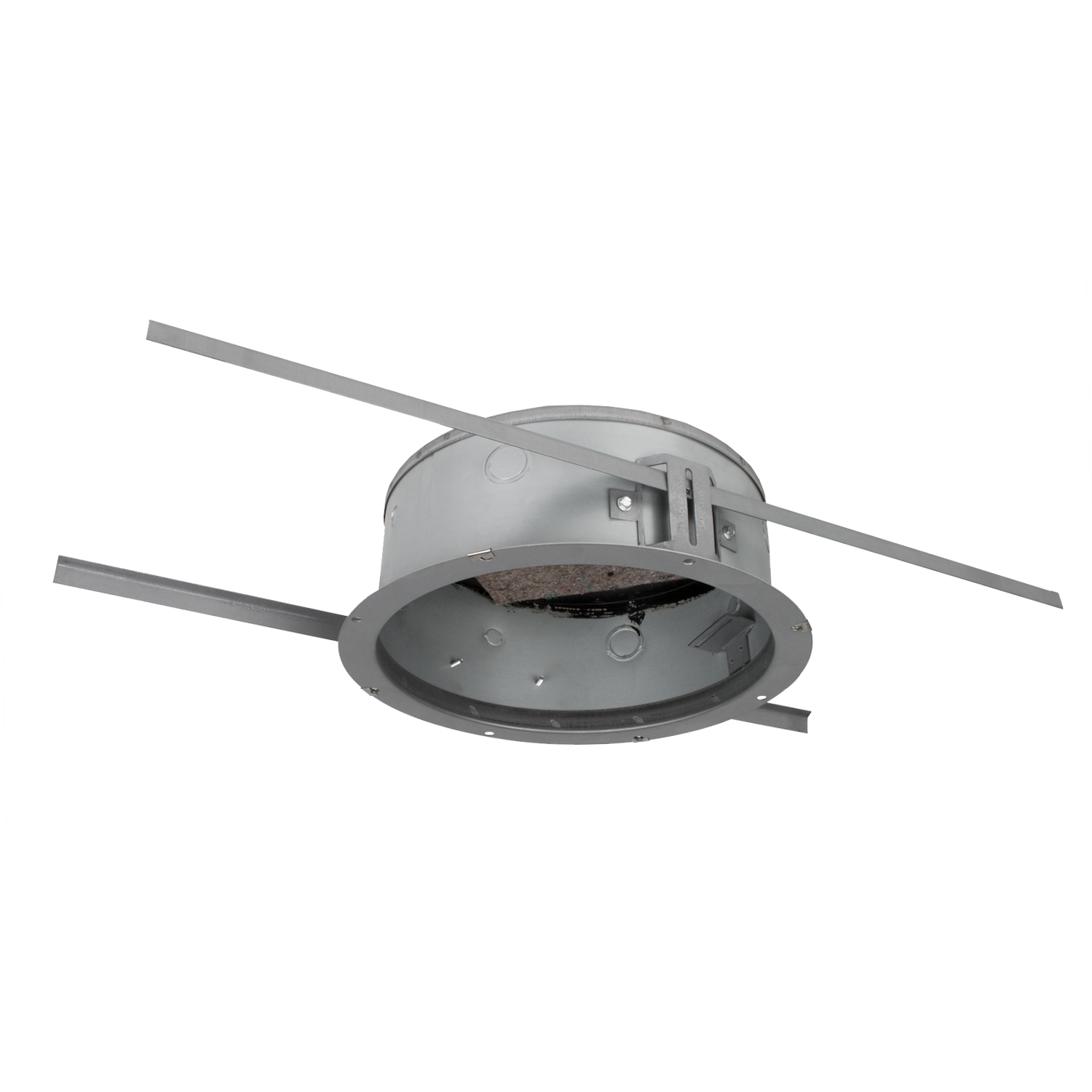

EZ Mount Recessed Enclosure for 8 inch Speakers

EZ95-8
Availability: In stock
Your price (USD): $39.99
  • BAA
  • TAA
    DESCRIPTION

    EZ95-8 model enclosure is furnished with: four compound combination knockouts (1/2"–3/4", 13–19mm) spaced 90° apart. Four 8–32 J-Clips for screw-mount baffles are installed on the enclosure.

    The EZ Mount Support System (Patent # 4,484,658) is included on this model which accepts a wide selection of baffles.


    FEATURES
    • Accommodates a Wide Selection of Atlas Sound Baffles
    • Eliminates the Need for Tile Bridges and Time-Consuming Screw Mounting
    • Patented Enclosure/Rail System Installs Easily to Provide Time and Labor Savings

    SPECIFICATIONS
    Depth 4 1/4" (10.80 cm)
    Diameter 9 7/8" (25.08 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
    Mounts Baffle 51-8, 60-8(W), 61-8W, (T)62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222, M222W, P900, T51-8, T60-8, T61-8W,T610-8, T710-8, T720-8A, TM222W

    SUPPORT FILES
    Data Sheet
    ATS004107 EZ Mount System Datasheet RevA
    CAD Drawing
    EZ95-8
