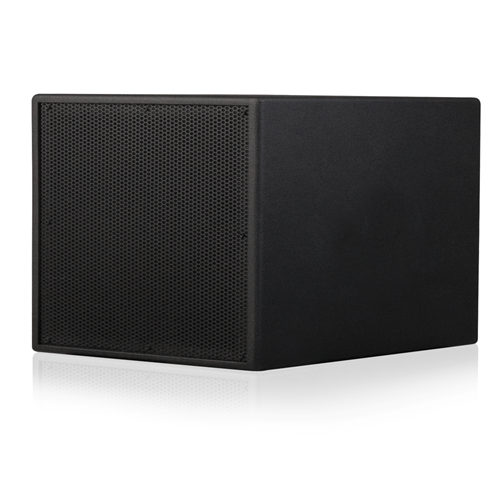

Powered Low Frequency Speaker System

ELW110A-B
  • TAA
  • BAA
  • Powered
  • Onboard DSP
    DESCRIPTION

    The Atlas A-Line ELW110A-B low frequency speaker system is ideally suited for use in speech and music reproduction applications when used in conjunction with an EL1503-B full range line array speaker system.  The ELW110A-B includes a single 10" low frequency driver in an optimally designed and constructed enclosure. The ELW110A-B includes 200W RMS class D amplifier that includes onboard DSP. The ELW110A-B is designed to provide power to an EL1503-B in a single ELI line array system and includes all necessary hardware to make this connection. The ELW110A-B will also power a second passive low frequency speaker, model ELW110X-A, and second EL1503-B in a dual line array application.


    FEATURES

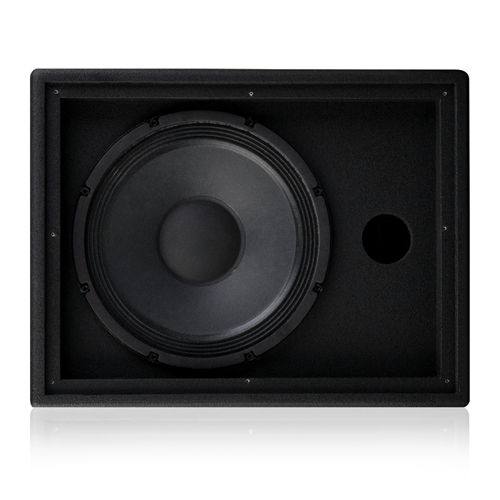

    • Single 10" Low Frequency Driver
    • Integrated 200W RMS Class D Amplifier (A Version)
    • Finished in Heavy Duty Black Duracoat™

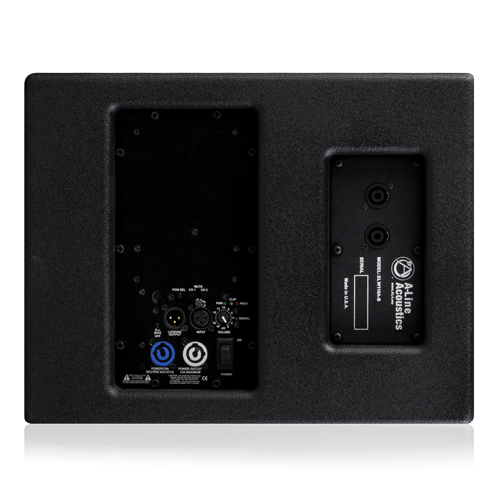

    • I/O Powercon Connectors

    SPECIFICATIONS
    Amplifier Power 200 Watts
    Horizontal Dispersion Omni
    Midrange RMS Power 1000 Watts
    Frequency Response 49Hz - 160Hz
    Frequency Response 40Hz - 200Hz
    Height 17.5" (44.45 cm)
    Width 13.0" (33.02 cm)
    MAX SPL 128 dB
    Weight 33 lbs (14.97 kg)

    SUPPORT FILES

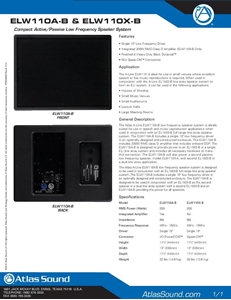

    Data Sheet
    ALA004495 ELW110 Datasheet
