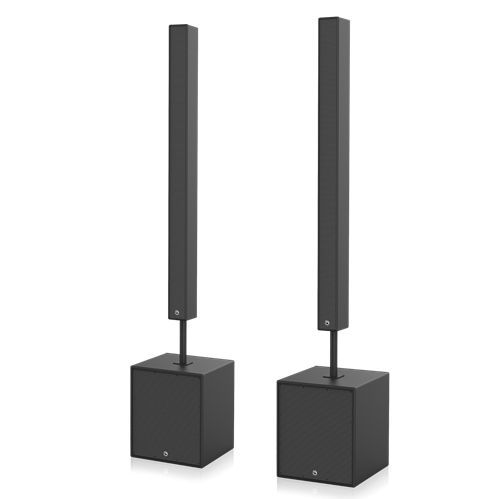

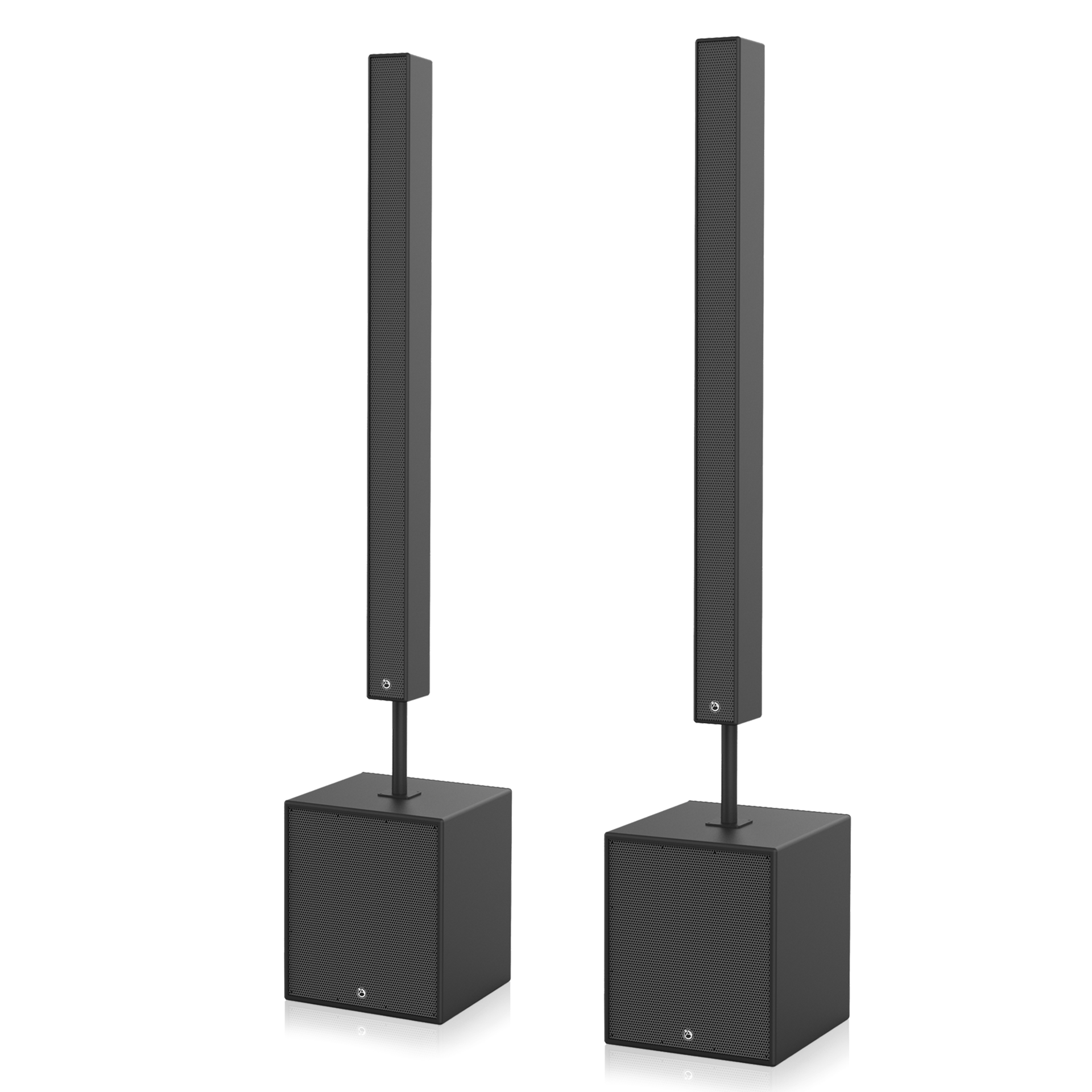

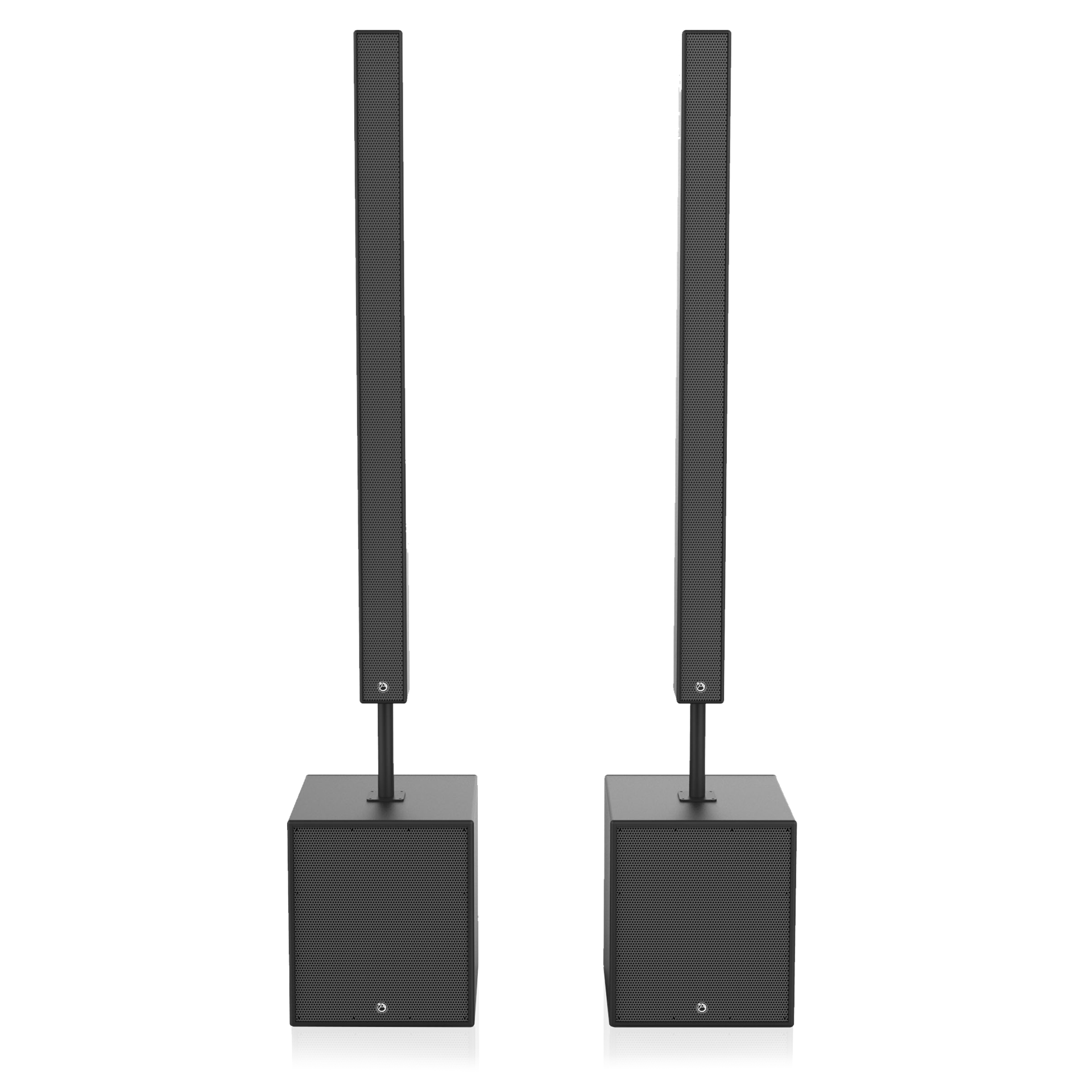

Active Medium Length Line Array Speaker System

ELIJAH2K-B
  • BAA
  • TAA
  • Onboard DSP
  • Powered
    DESCRIPTION

    The Atlas A-Line ELIJAH Line array speaker system is a highly intelligible, high efficiency speaker system that is ideally suited for use in speech and music reproduction applications for small venues such as houses of worship, medium sized theaters, and schools. The system consists of two parts: the EJ2003-B, which includes twenty proprietary 3" drivers, and the EJW115, which is a single 15" low frequency driver. Both models utilize an optimally designed Baltic birch constructed enclosure. The EJW115A-B houses an integrated class D amplifier that includes onboard DSP. The EJW115A-B is designed to provide power to the EJW115X-B and the two EJ20003-B arrays. The trim line, two cabinet design allows for sleek, clean looking set ups with minimal sightline interference. This kit includes everything needed to set up the system, including the power cable, speaker cables and poles.

    This kit sku includes two (2) EJ2003-B, one (1) EJW115A-B, and one (1) EJW115X-B.


    Features
    • EJ2003-B
    • Twenty Proprietary 3" Full Range Speakers
    • Sealed Baltic Birch Cabinet Design
    • Excellent Pattern Control to 115Hz Vertically
    • NL4 Speak-ON™ Connectors
    • EJW115A-B
    • Single 15" Subwoofer
    • Integrated 1000W RMS Class D Amplifier (A Version)
    • Finished in Heavy Duty Black Duracoat™

    SPECIFICATIONS
    EJ2003-B (enter custom value)
    Sensitivity 94 dB 1W/1m
    Horizontal Dispersion Omni
    Midrange RMS Power 1000 Watts
    Frequency Response 175Hz - 11kHz
    Height 65.6" (166.6 cm)
    MAX SPL 3' 112 dB
    Width 4.8" (12.2 cm)
    MAX SPL 128 dB
    Depth 6.4" (16.3 cm)
    Frequency Response 41Hz - 140Hz
    Height 21.6" (54.86 cm)
    MAX SPL 6' 109 dB
    MAX SPL 12' 107 dB
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

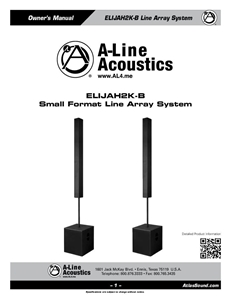

    ALA004556 ELIJAH2K-B Owners Manual (12 pages) ALA004556 ELIJAH2K-B Owners Manual (12 pages)

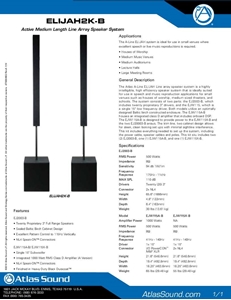

    ELIJAH2K-B Datasheet (1 page) ELIJAH2K-B Datasheet (1 page)
