ELI Compact Line Array Speaker System

ELI2K-B
  • TAA
  • BAA
  • Powered
  • Onboard DSP

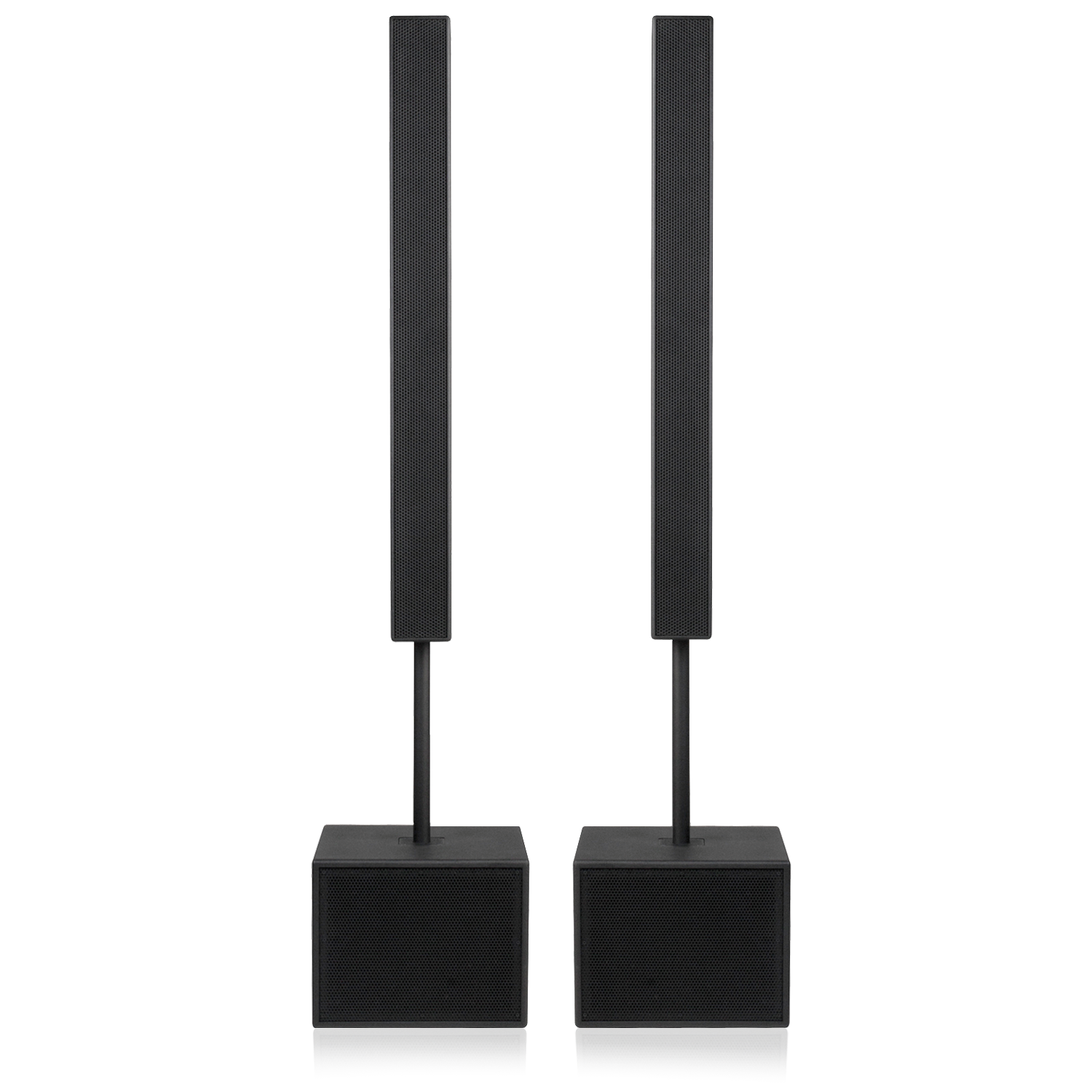

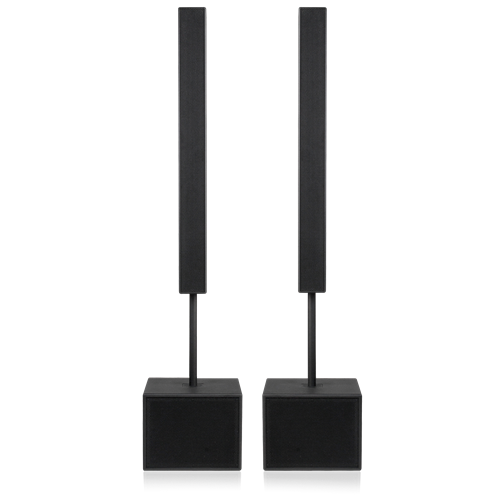

    The Atlas A-Line ELI Line array loudspeaker system is a highly intelligible, high efficiency loudspeaker system that is ideally suited for use in speech and music reproduction applications for small venues such as houses of worship, small theaters, and schools. The system consists of two parts: the EL1503-B, which includes fifteen proprietary 3" drivers, and the ELW110, which has a single 10" low frequency driver. Both models utilize an optimally designed Baltic birch constructed enclosure. The ELW110A-B houses an integrated class D amplifier that includes onboard DSP. The ELW110A-B is designed to provide power to the ELW110X-B and the two EL1503-B arrays. The trim line, two cabinet design allows for sleek, clean looking set ups with minimal sightline interference. This kit includes everything needed to set up the system, including the power cable, loudspeaker cables and pole.
    This package sku includes two (2) EL1503-B, one (1) ELW110A-B, and one (1) ELW110X-B
    .

    FEATURES
    Fifteen Proprietary 3" Speakers
    Sealed Baltic Birch Cabinet Design
    Excellent Pattern Control to 300Hz
    NL4 Speak-ON™ Connectors
    I/O Powercon Connectors
    Single 10" Low Frequency Driver
    Integrated 200W RMS Class D Amplifier (A Version)
    Finished in Heavy Duty Black Duracoat™
    SPECIFICATIONS
    EL1503-B (enter custom value)
    Sensitivity 93 dB 1W/1m
    Midrange RMS Power 1000 Watts
    Horizontal Dispersion Omni
    High Frequency RMS Power 500 Watts
    Frequency Response 175Hz - 11kHz
    Height 49.6" (126.05 cm)
    Width 4.8" (12.23 cm)
    MAX SPL 6' 104 dB
    Depth 6.375" (16.2 cm)
    Weight 33 lbs (14.97 kg)
    Frequency Response 60Hz - 16kHz (±6dB)
    Frequency Response 49Hz - 160Hz
    Height 17.5" (44.45 cm)
    Width 13.0" (33.02 cm)
    SUPPORT FILES
    Owners Manual
    ELI2K-BOwnersManual (12 pages)
    Owners Manual
    ALA004557 ELI2K-B Owners Manual (12 pages)
    Data Sheet
    ALA004901 ELI2K-B Datasheet (1 page)
