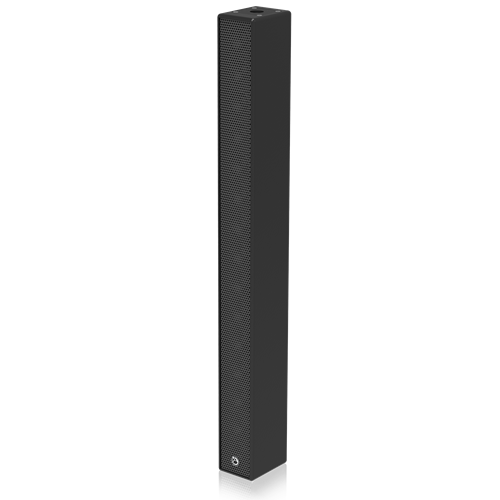

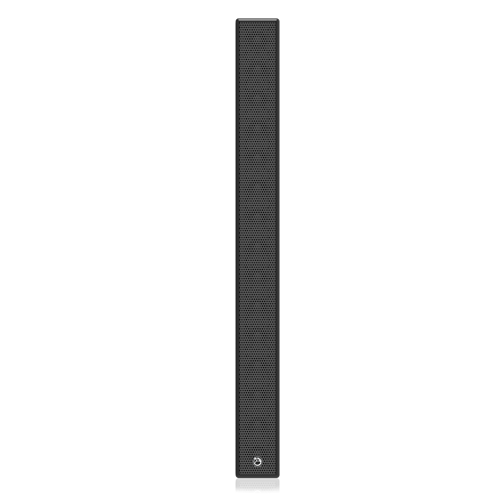

Compact Full Range Line Array Speaker System

EL1503-B
  • BAA
  • TAA
  • 4OHM8OHMCAPABLE
  • Non-Powered
    DESCRIPTION

    The Atlas A-Line EL1503-B line array speaker system is a high intelligibility, high efficiency speaker system that is ideally suited for use in speech and music reproduction applications for small venues like houses of worship, small theaters, or schools.  The EL1503-B includes fifteen proprietary 3" drivers in an optimally designed and constructed sealed Baltic birch enclosure.


    Features
    • Fifteen Proprietary 3" Speakers
    • Sealed Baltic Birch Cabinet Design
    • Excellent Pattern Control to 300Hz
    • NL4 Speak-ON™ Connectors
    • Finished in Heavy Duty Black Duracoat™

    SPECIFICATIONS
    Total RMS Power 200 Watts
    Midrange RMS Power 1000 Watts
    Sensitivity 93 dB 1W/1m
    High Frequency RMS Power 500 Watts
    Frequency Response 175Hz - 16kHz
    MAX SPL 6' 104 dB
    Height 49.6" (126.05 cm)
    Width 4.8" (12.23 cm)
    MAX SPL 12' 101 dB
    Depth 6.375" (16.2 cm)
    Weight 33 lbs (14.97 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    ELI_1503 EASE DATA ELI_1503 EASE DATA
    EL1503-B Datasheet (1 page) EL1503-B Datasheet (1 page)
