Medium Length Full Range Line Array Speaker System for Fixed Installation - White

EJ2003I-W

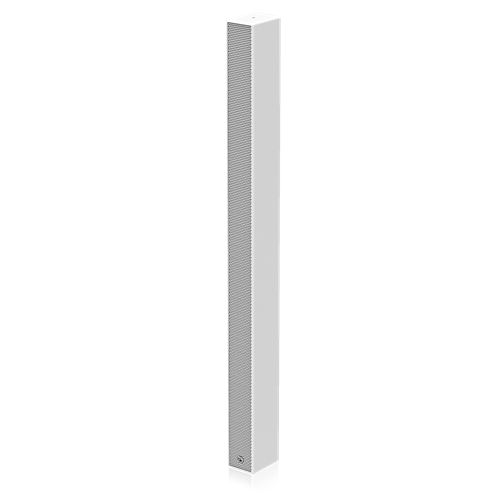

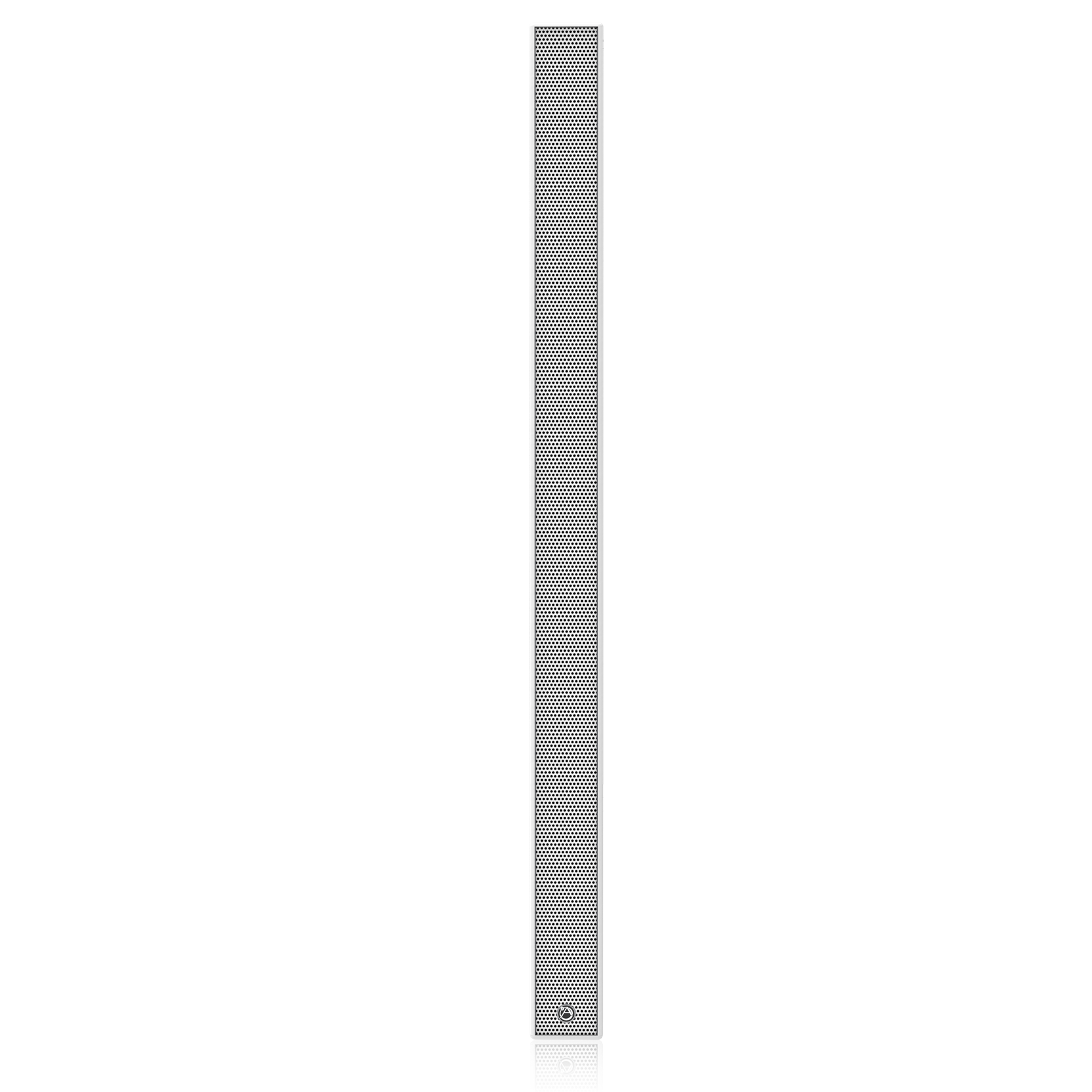

    The AtlasIED EJ2003I-W line array system is a 500W RMS power full range loudspeaker system that is designed for use in speech and music reproduction applications for small venues like houses of worship, medium sized theaters, or schools. The unit consists of a sealed baltic birch enclosure housing twenty proprietary 3" full range drivers.

    The EJ2003I-W is designed to be used in conjunction with a powered subwoofer unit, the EJW115AI-W, that powers the EJ2003I-W with its built in class D amplifier to take advantage of the integrated DSP preloaded in the subwoofer amplifier. The unit can also be used with other high power amplifiers, but utilizing a digital signal processor is recommended for best sound quality.

    FEATURES
    Twenty Proprietary 3" Full Range Speakers
    Sealed Baltic Birch Cabinet Design
    Excellent Pattern Control to 115Hz Vertically
    inished in Heavy Duty Black Duracoat™

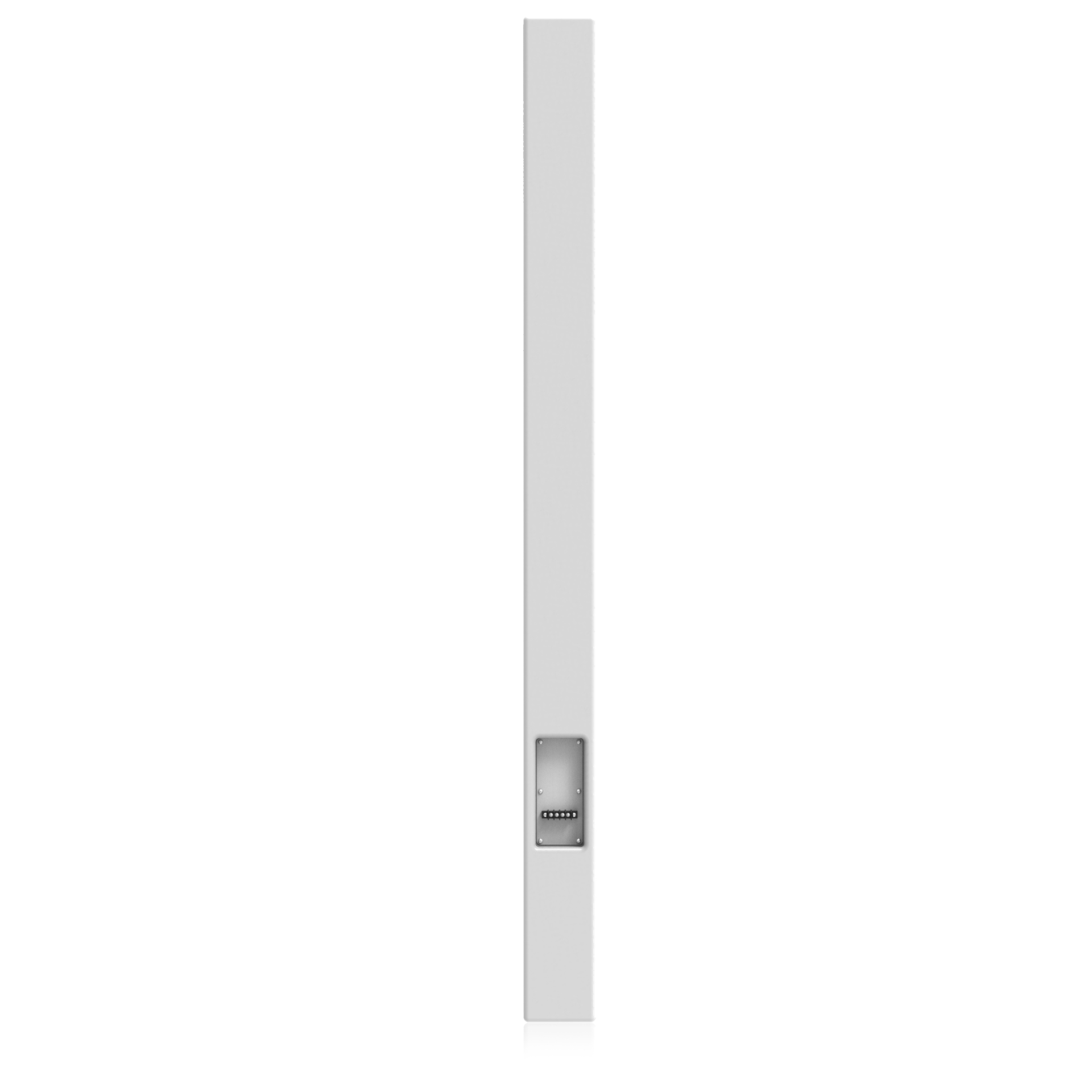

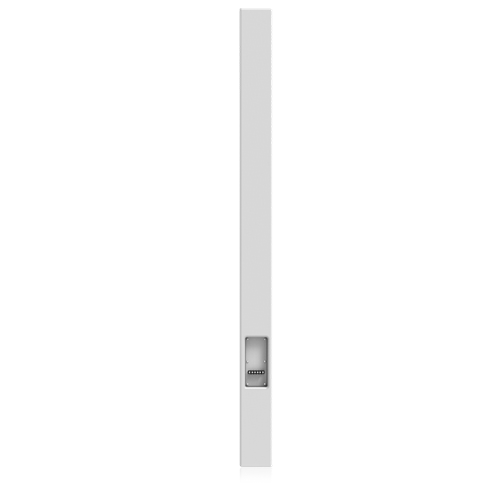

    Barrier Strip Terminal
    Wall Mount Bracket Sold Separately (ALELB1-W)
    SPECIFICATIONS
    Total RMS Power 500 Watts
    Sensitivity 94 dB (1W/1m)
    Frequency Response 175Hz - 16kHz
    Height 65.6" (1660mm)
    Depth 6.4" (163mm)
    MAX SPL 3' 112 dB
    MAX SPL 12' 107 dB
    Width 4.8" (122mm)
    Weight 30 lbs (13.61 kg)
    SUPPORT FILES
    Owners Manual
    Owners Manual (12 pages)
