15A AC Power Conditioner and Spike Suppressor (Single Housing)

ECM-15SH
  • UL Listed
  • CUL

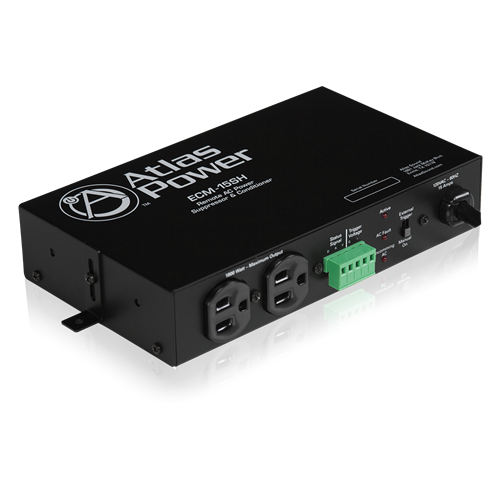

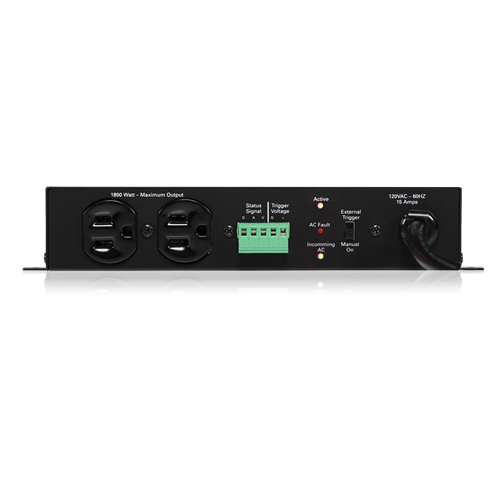

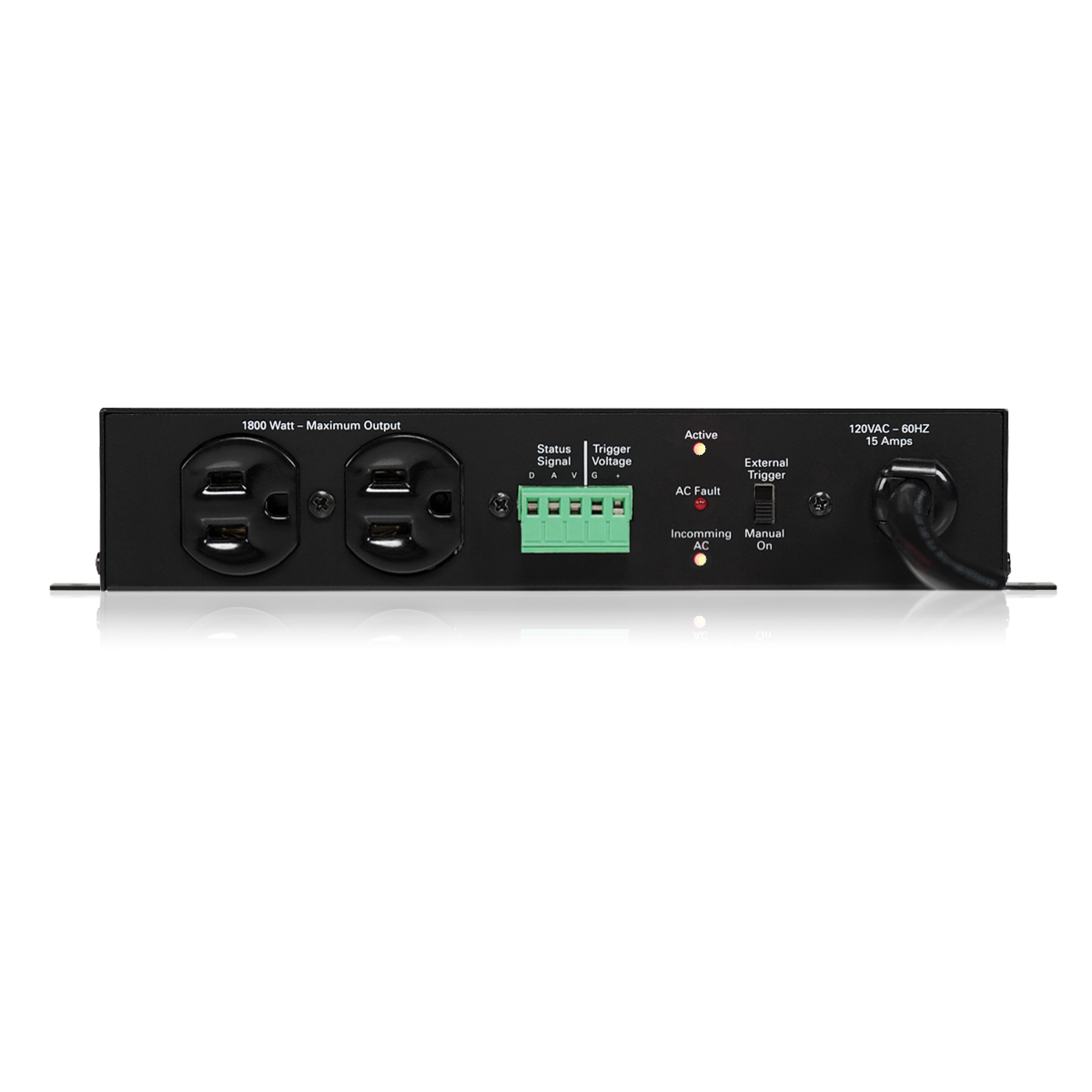

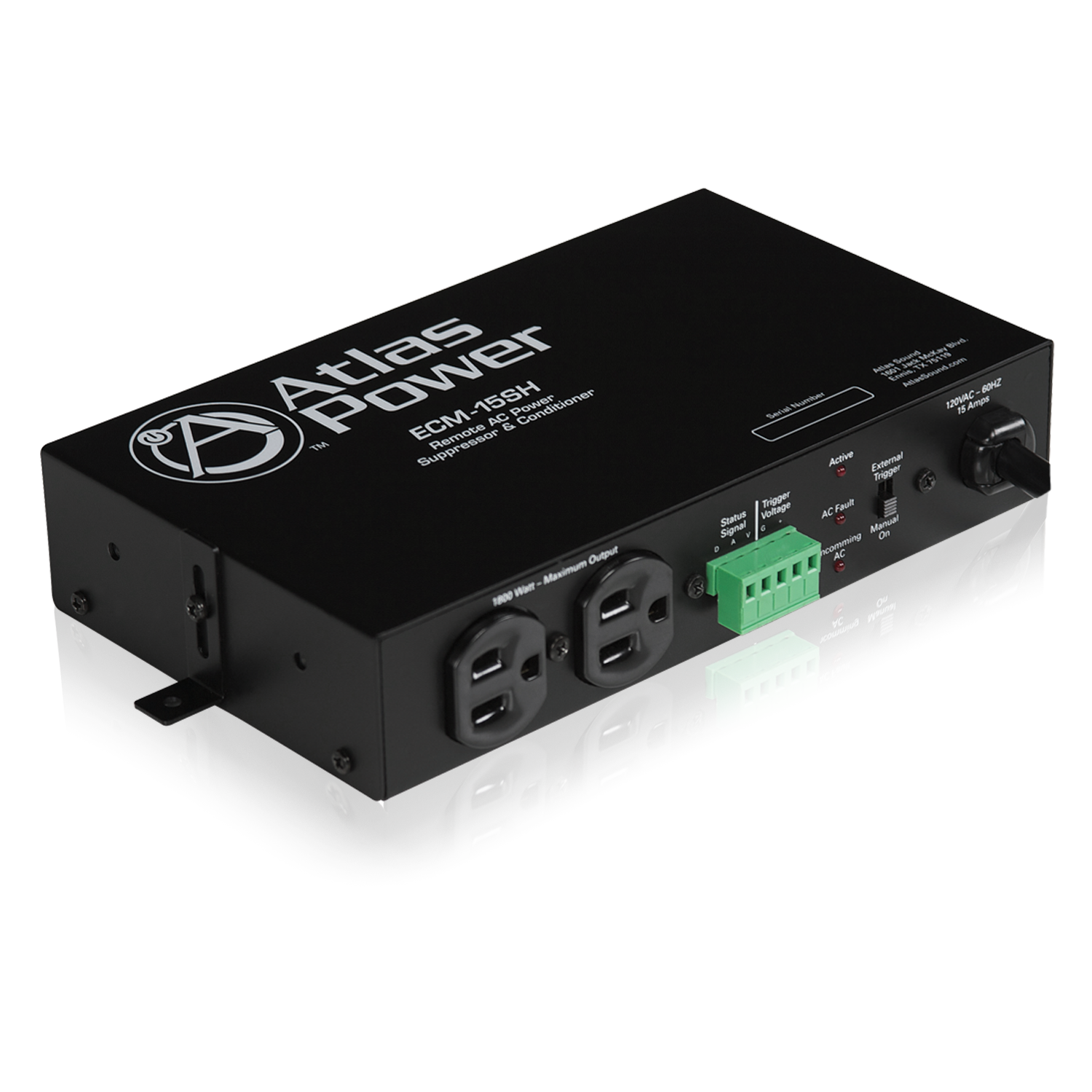

    The Atlas Power ECM-15SH is a 120V 60Hz AC, 15A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller, ECS-6RM or the ECS-3, up to 1000ft away.

    The ECM-15SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs, the ECM-15SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch, Incoming AC presence LED, Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller, Extreme Voltage Shutdown Circuitry (EVS) is active, along with Voltage and Current status readings.

    Features
    2 Outlets, 15A
    Radio Frequency & Electromagnetic Interference Filters
    Spike & Surge Suppression
    Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
    AC Fault Indicator
    Fuse Protection @ 15A Slow Blow
    Manual Bypass Switch
    Active Outlet LED
    RoHS Compliant
    Tech Specs
    Current Rating 15 Amps
    Power Requirement 120V 60Hz
    Certified to Safety Listing ETL (UL 1449)
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 5W
    AC Mains Power Cord 9' (3m)
    Height 1.75" (44.5mm)
    Width 8.5" (215.9mm)
    Depth 5.0" (127mm)
    Weight 4.5 lbs (2.04kg)
    Support Files

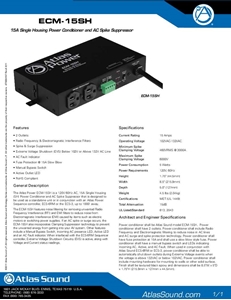

    Data Sheet Data Sheet (1 page) View | Download

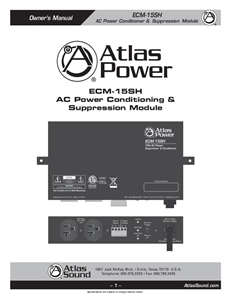

    Owners Manual ECM-15SH Owners Manual (16 pages) View | Download

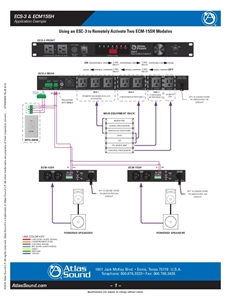

    Application Example ESC-3_ECM-15SH_App (2 pages) View | Download
