Torsion Mount 4 inch Enclosure 11 inch Deep

E410-11
Availability: In stock
Your price (USD): $53.99
  • BAA
  • TAA
    DESCRIPTION

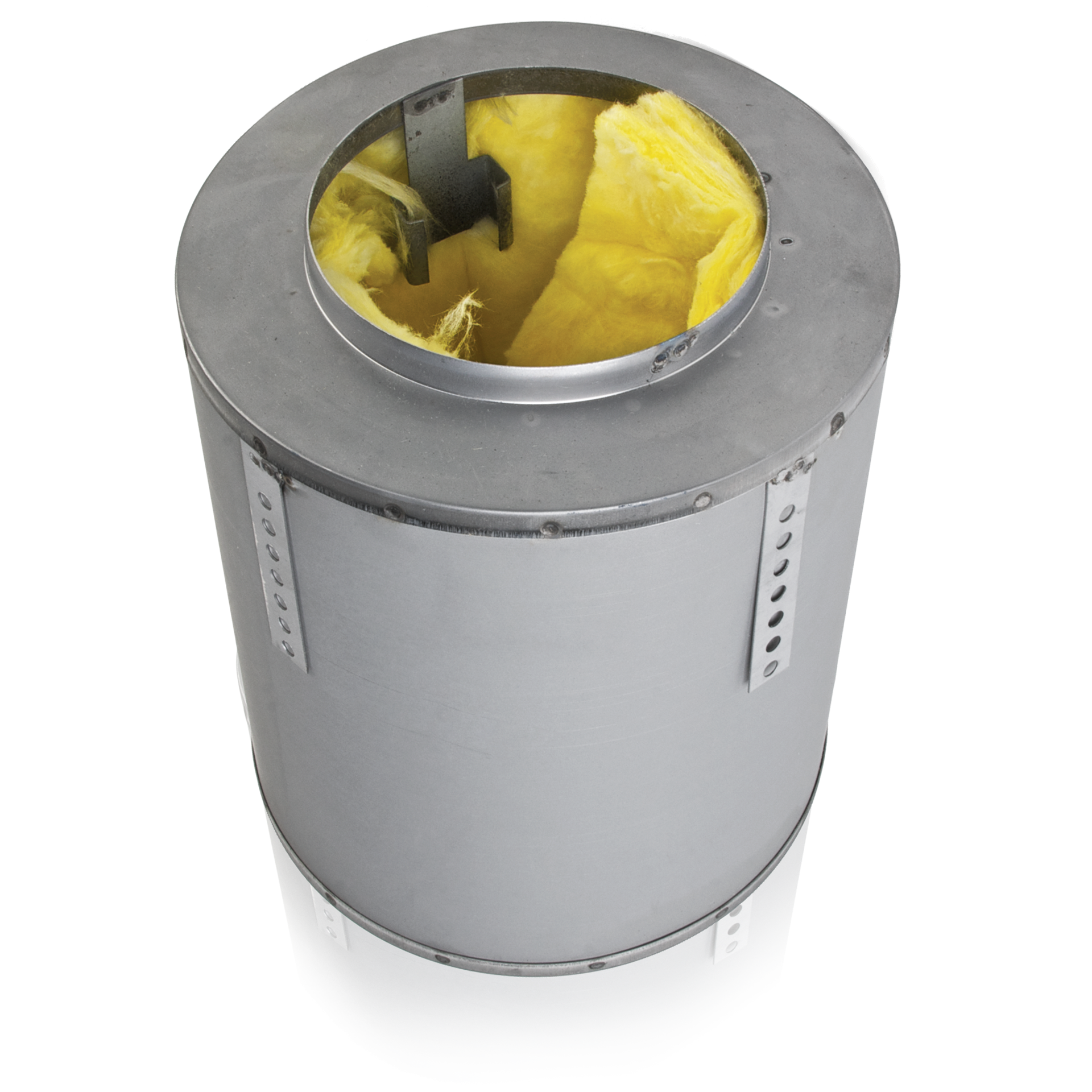

    Utilize AtlasIED E410 Series recessed enclosures to mount hardware-free, torsion spring grilles.

    These enclosures are designed for use with 4" (102 mm) speakers and are available with conduit knockouts (E410) to accommodate varying building code and installation requirements.

    This high-volume, 1/2 cubic foot (.014m3) version of Model E410 enhances the low frequency response of an installed speaker.

    Model E410- 11 has a depth of 11" (279mm) and includes high-density fiberglass fill to absorb internal sound reflection.


    FEATURES
    • Equipped with Receptacles for Easy Installation of Torsion Spring Grilles
    • High-Volume Model Provides Extended Bass Response
    • Perfect For USe With FA134 and FC104 Loudspeakers

    SPECIFICATIONS
    Depth 11" (27.94 cm)
    Diameter 10 1/8" (25.72 cm)
    Shipping Weight 6.00 lbs (2.72 kgs)
    Mounts Baffle T730-4B(4G), T51-4, T60-4, T710-4, T720-4(BT), T740-4

    SUPPORT FILES
    Data Sheet
    ATS001460 E410 Series Datasheet RevB
    CAD Drawing
    E410-11
